| Categories | CNC Touch Probe |
|---|---|
| Brand Name: | Silvercnc |
| Model Number: | Dop40 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | $1000-5000 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 sets per month |
| Delivery Time: | 5-7 work days |
| Packaging Details: | 559*400*400mm carton |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed: | 1um (2σ) |
| Stylus trigger force Use standard 50mm probe: | XY plane 0.4 - 0.8N/Z direction 4.0N |
| Trigger protection trip: | XY plane +/-15°/Z direction 6.35mm |
| Signal transmission method: | Optical transmission |
| Operating range: | 5m |
| Weight without shank (including batteries): | 280g |
| Sealing: | IP68 |
| Operating temperature: | 0-60℃ |
Radio-triggered transmission probe CNC Machine Tool touch Probes with high stability
Intruduction
DRP40 is a compact 3 d contact workpiece detection probe designed and developed by our company.
The DRP40 probe transmits radio signals to and from the receiver.It applies the intelligent frequency conversion technology independently developed by the company, intelligent matching channel between probe and receiver, which perfectly solves the problem that radio probe and receiver can not be interchanged or the operation after interchanging is extremely troublesome in the industry.At the same time, DRP40 USES the company's original multilevel combination counter code technology, and the number of probe channels is unlimited, which solves the problem that the number of radio probe channels in the industry is less than 100.The product adopts multi-threshold power control technology, which greatly reduces the power consumption of the product.
The general 3.6V/1200mA battery has a service life of more than 1 year.The DRP40 trigger sensor successfully solves the problems of poor stability and unstable repetitive positioning accuracy in the industry through the high rigidity alloy structure and the independent reset technology of oscillation independently developed by the company.
The stable performance is excellent and the repetitive positioning accuracy is high.Mainly used in signal transmission distance or obstacle requirements of the machine and occasions, such as large size machine tool processing, multi-spindle processing
Silver Radio-triggered Probe advantages
Radio wave signals are transmitted without fear of obstacles | ||||||||||
| over 1 year battery life.Far ahead in the industry | ||||||||||
| Excellent operation stability, first-class in the industry | ||||||||||
| Unlimited channel technology is unique in the industry | ||||||||||
| Intelligent frequency cutting technology has great advantages | ||||||||||
| suitable for signal transmission distance and obstacle requirements of the machine |
Product parameters
| Model | DRP40 | |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed | 1um (2σ) | |
| Sense directions | ±X,±Y,+Z | |
| Stylus trigger force Use standard 50mm probe | XY plane 0.4 - 0.8N | Z direction 4.0N |
| Trigger protection trip | XY plane +/-15° | Z direction 6.35mm |
| Signal transmission method | Radio transmission | |
| Operating range | 15m | |
| Trigger life | >10 Million times | |
| Transmission angle | 360 ° along the probe axis | |
| Transmission on/off style | smart switch | |
| Weight without shank (including batteries) | 280g | |
| type of battery | 2x lithium battery 14250 | |
| battery life | Standby | >600 days |
| 5% use | >540 days | |
| continue use | >360 days | |
| Sealing | IP68 | |
| Operating temperature | 0-60℃ | |

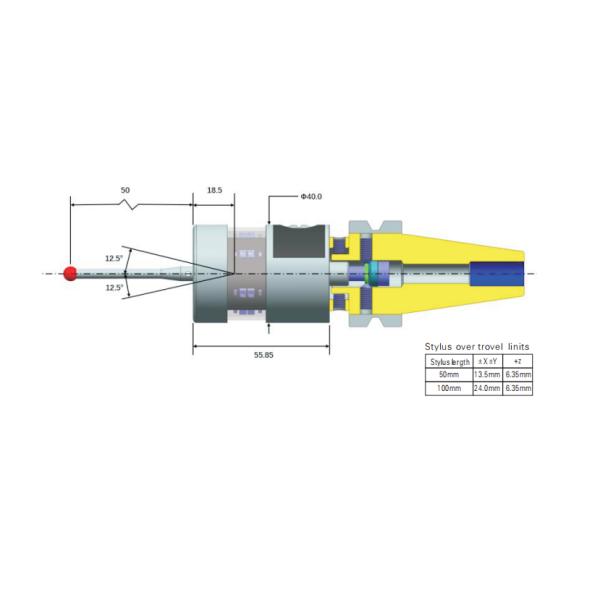

Product dimession
Product application
|
