| Categories | CNC Touch Probe |
|---|---|
| Brand Name: | Silvercnc |
| Model Number: | Dop40 |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | $1000-5000 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 sets per month |
| Delivery Time: | 5-7 work days |
| Packaging Details: | 559*400*400mm carton |
| Certification: | ISO9001 |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed: | 1um (2σ) |
| Stylus trigger force Use standard 50mm probe: | XY plane 0.4 - 0.8N/Z direction 4.0N |
| Trigger protection trip: | XY plane +/-15°/Z direction 6.35mm |
| Signal transmission method: | Optical transmission |
| Operating range: | 5m |
| Weight without shank (including batteries): | 280g |
| Sealing: | IP68 |
| Operating temperature: | 0-60℃ |
Optical transmission probe CNC Machine Tool touch Probes with high stability
Intruduction
The DOP40 is a compact touch-trigger probe with optical signal
transmission that is used for workpiece set-up inspection on a wide
range of medium and large machining centres. It offers users an up
to 90% reduction in set-up time, as well as a reduction in scrap
and fixture costs.
Compatibility with all kind of optical receivers (legacy and new
generation) enables users to easily upgrade existing installations
Silver Probe advantages
Silvercnc inspection probe | ||||||||||
| Optical 2-channel, remote channel switching, industry first | ||||||||||
| Low power consumption with battery life over 1 year,leading the industry | ||||||||||
| <1/100000 lost signal probability | ||||||||||
| IP68 protection level |
Product parameters
| Model | DOP40 | |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed | 1um (2σ) | |
| Sense directions | ±X,±Y,+Z | |
| Stylus trigger force Use standard 50mm probe | XY plane 0.4 - 0.8N | Z direction 4.0N |
| Trigger protection trip | XY plane +/-15° | Z direction 6.35mm |
| Signal transmission method | Optical transmission | |
| Operating range | 5m | |
| Trigger life | >10 Million times | |
| Transmission angle | 360 ° along the probe axis | |
| Transmission on/off style | smart switch | |
| Weight without shank (including batteries) | 280g | |
| type of battery | 2x lithium battery 14250 | |
| battery life | Standby | >600 days |
| 5% use | >540 days | |
| continue use | >360 days | |
| Sealing | IP68 | |
| Operating temperature | 0-60℃ | |
Product dimession

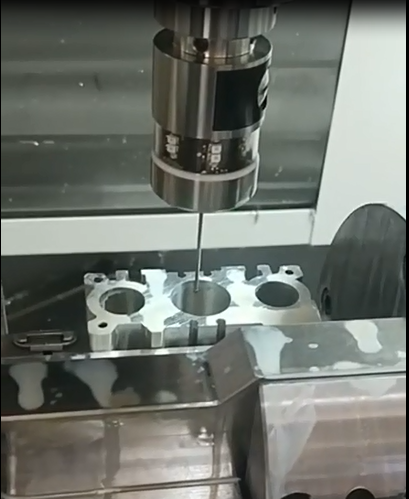

Product application
|
