| Categories | Conveying Hoisting Machine |
|---|---|
| Place of Origin: | Henan, China |
| Brand Name: | CITIC LK |
| Supply Ability: | 1000 Set/Sets per Year |
| Packaging Details: | Standard packing or according to customer's requirement |
| MOQ: | >=1 Sets |
| Price: | $4,000.00 |
| Model Number: | Conveying Hoisting Machine |
| Certification: | ISO/CE |
| Warranty: | 1.5 years |
| Applicable Industries: | Manufacturing Plant, Construction works , Energy & Mining |
| Local Service Location: | Viet Nam, Indonesia, Australia, Argentina |
| Showroom Location: | None |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Hoisting height: | JK series Single Sope Winding Mine Hoist |
| Drum number: | JK/JKMD |
| Drum Diameter (m): | 2-6 |
| Drum Width PF (m): | 1-2.5 |
| Tension PF (KN): | 60-245 |
| Tension Differe (KN): | 40-170 |
| Diameter (mm): | 24.5-50 |
| Total Weight (Kg): | 20415-110765 kg |
| Port: | QingDao,ShangHai,TianJin |
| Company Info. |
| Luoyang Zhongtai Industries CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
JK/JKMD Series Multi-Rope Friction Mining Hoist
The series product including 1.85m-4m head frame and floor types, and can be used for mineral hoisting, personnel lifting and material and equipment descending from vertical shafts of coal, metal and nonmetal ores.
Tower multi rope friction mine hoist
| Model | Wheel diameter | Wire Rope | Max ascension speed | Reducer | Size (L×W×H) | |
| maximum static tension | ||||||
| m | kN | m/s | Model | Speed ratio | m | |
| JKM-1.3×4(Ⅰ)E | 100 | 5 | XP550 | 11.5 | 6.4×6.5×1.6 | |
| JKM-1.6×4(Ⅰ)E | 150 | 8 | XP560 | 7.35 10.5 11.5 | 6.4×7×1.75 | |
| JKM-1.85×4(Ⅰ)E | 210 | 10 | XP800 | 7×7.5×2.02 | ||
| JKM-2×4(Ⅰ)E | 2 | 230 180 | 10 | XP800 | 7×8×2.2 | |
| JKM-2.25×4(Ⅰ)E | 2 | 215 | 10 | XP800 | 7.4×8×2.3 | |
| JKM-2.8×4(Ⅰ)E | 2.5 | 335 | 14 | XP1000 | 8.5×10×2.65 | |
| JKM-2.8×4(Ⅱ)E | P2H630 | 7.5×8.5×2.65 | ||||
| JKM-2.8×6(Ⅰ)E | 2.5 | 500 | 14 | XP1120 | 8×8.5×2.68 | |
| JKM-2.8×6(Ⅱ)E | P2H800 | 7.5×8.5×2.68 | ||||
| JKM-2.8×6(Ⅲ)E | 7.5×8×2.7 | |||||
| JKM-3.25×4(Ⅰ)E | 3 | 450 | 14 | XP1120 | 7.35 10.5 11.5 | 8.9×8.9×2.98 |
| JKM-3.25×4(Ⅱ)E | P2H800 | 8.5×8.7×2.98 | ||||
| JKM-3.5×6(Ⅰ)E | 3 | 790 | 14 | XP1250 | 11.5×9.2×3.15 | |
| JKM-3.5×6(Ⅱ)E | P2H900 | 10.5×9.2×3.15 | ||||
| JKM-3.5×6(Ⅲ)E | 8×9×3.2 | |||||
| JKM-4×4(Ⅰ)E | 3.2 | 690 | 14 | XP1250 | 7.35 10.5 11.5 | 9×10×3.63 |
| JKM-4×4(Ⅱ)E | P2H900 | 9×10×3.63 | ||||
| JKM-4×4(Ⅲ)E | 7.5×9×3.63 | |||||
| JKM-4×6(Ⅲ)E | 3.2 | 1030 | 9×9×3.63 | |||
| JKM-4.5×6(Ⅲ)E | 3.6 | 1330 | 16 | 12×9.5×3.9 | ||
| JKM-5×6(Ⅲ)E | 4 | 1600 | ||||

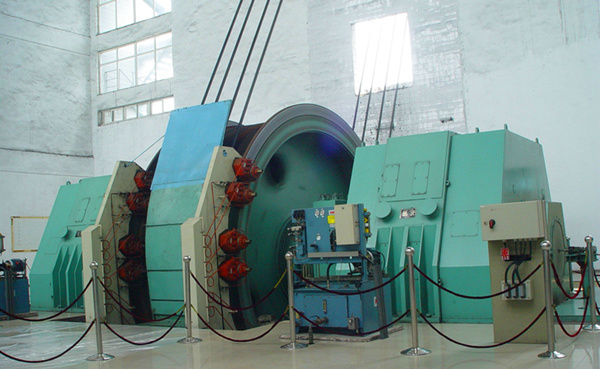

Floor type multi rope friction mine hoist
| Model | Wheel diameter | Wire Rope | Max ascension speed | Reduces | Size (L×W×H) | |||
| maximum static tension | Max
| |||||||
| m | kN | mm | m/s | Model | Ratio | m | ||
| JKMD-2.25×2(Ⅰ)E | 2.25 | 105 | 22 | 10 | ZZP560(2) | 11.5 | 7.7×9×2.1 | |
| JKMD-2.25×4(Ⅰ)E | 215 | XP800(2) | 7.35 10.5 11.5 | 6.8×9.5×2.3 | ||||
| JKMD-2.8×2(Ⅱ)E | 2.8 | 165 | 28 | XP800(2) | 7.8×10×2.65 | |||
| JKMD-2.8×4(Ⅰ)E | 335 | XP1000(2) | 8.5×10×2.65 | |||||
| JKMD-2.8×4(Ⅱ)E | P2H800(2) | 7.5×10×2.65 | ||||||
| JKMD-3.5×2(Ⅰ)E | 3.5 | 265 | 35 | XP1000(2) | 7×9.5×3.02 | |||
| JKMD-3.5×4(Ⅰ)E | 525 | 13 | XP1120(2) | 8.5×9.5×3 | ||||
| JKMD-3.5×4(Ⅱ)E | P2H800(2) | 8×9.5×3.02 | ||||||
| JKMD-3.5×4(Ⅲ)E | 7.5×9.5×3.0 | |||||||
| JKMD-4×2(Ⅰ)E | 4 | 340 | 39.5 | 12 | XP1120(2) | 7.35 10.5 11.5 | 8.2×10×3.4 | |
| JKMD-4×2(Ⅱ)E | P2800(2) | 7.8×10×3.4 | ||||||
| JKMD-4×4(Ⅰ)E | 680 | 14 | XP1250(2) | 11×10×3.4 | ||||
| JKMD-4×4(Ⅱ)E | P2H900(2) | 10.5×10×3.4 | ||||||
| JKMD-4×4(Ⅲ)E | 8.1×8.7×3.4 | |||||||
| JKMD-4.5×4(Ⅲ)E | 4.5 | 900 | 45 | 9.5×9.5×3.7 | ||||
| JKMD-5×4(Ⅲ)E | 5 | 1070 | 50 | 9.5×10×4 | ||||
| JKMD-5.5×4(Ⅲ)E | 5.5 | 1300 | 55 | 11×10.5×4.5 | ||||
| JKMD-5.7×4(Ⅲ)E | 5.7 | 1500 | 57 | |||||
| JKMD-6×4(Ⅲ)E | 6 | 1570 | 57 | 11×10.5×4.5 | ||||
|
