| Categories | Bare Conductor |
|---|---|
| Brand Name: | Huanghe |
| Model Number: | AAC |
| Certification: | IOS OHSAS CCC IEC |
| Place of Origin: | China |
| MOQ: | 200 Meters |
| Price: | 0.1-100 USD |
| Payment Terms: | Western Union |
| Supply Ability: | 50000meters per week |
| Delivery Time: | 5-8 Days |
| Packaging Details: | Wooden Drum |
| Conductor Material: | Aluminum / Aluminum Alloy |
| Type of Conductor: | Stranded |
| Insulation Material: | PVC |
| Jacket: | PVC |
| Cross section area: | 16-800 |
| Product name: | AAC Bare Conductor |
| Company Info. |
| Henan Interbath Cable Co.,Ltd |
| View Contact Details |
| Product List |
One Bare Neutral Conductor Duplex Service Drop Wire With One XLPE Insulatedneutral conductor
Product Description
Application of the Bared Overhead Conductors
AAC,AAAC,ACSR,ACSR/AW,AACSR&ACAR conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
Specification of the Bared Overhead Conductors:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
Advantages of duplex cable

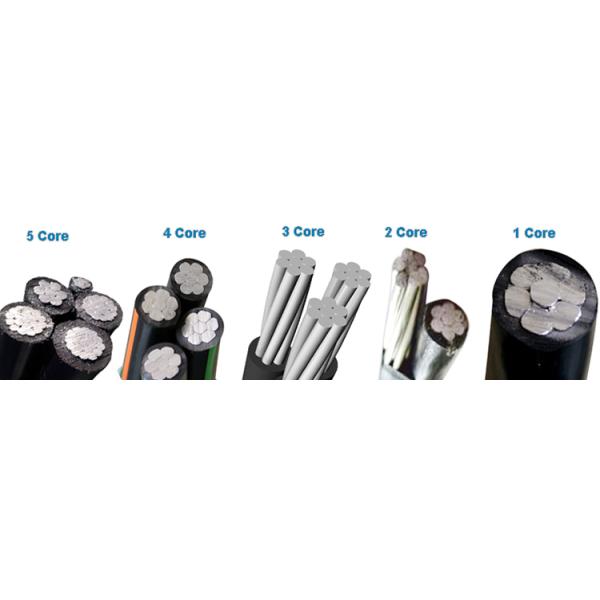

Our overhead insulated cable have formed a system, such as single core , two - core, three - core and four - core. there are conductors of aluminum , copper or aluminum conductors steel - reinforced. we can manufacture the overhead insulated cable not only in accordance with China's standard GB12527 - 90 but also the other standards and special requirement by the customers.
Parameter about cable duplex,more information, pls contact with me freely.
Code word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities(A) | |||||
ALLOY | Rated Strength Ibs | AAC | Insul Thick mm | XLPE | PE | |||||
Number | Dia mm | Number | Dia mm | |||||||
Heeler | 1*1/0AWG+1*123.3 | 7 | 3.37 | 4460 | 19 | 1.89 | 1.52 | 372 | 205 | 160 |
Schnauzer | 1*2AWG+1*77.47 | 7 | 2.67 | 2800 | 7 | 2.47 | 1.14 | 231 | 150 | 120 |
Whippet | 1*4AWG+1*48.69 | 7 | 2.12 | 1760 | 7 | 1.96 | 1.14 | 151 | 115 | 90 |
Harrier | 1*4AWG+1*48.69 | 7 | 2.12 | 1760 | 1 | 5.19 | 1.14 | 149 | 115 | 90 |
Vizsla | 1*6AWG+1*30.58 | 7 | 1.68 | 1110 | 7 | 1.56 | 1.14 | 100 | 85 | 70 |
Chihuahua | 1*6AWG+1*30.58 | 7 | 1.68 | 1110 | 1 | 4.11 | 1.14 | 98 | 85 | 70 |
Aluminum Conductor Steel Reinforced
Bare Conductor Types | Description | Nominal Section-area (mm2) |
ACC | All Copper Conductor | 16, 25, 35, 50, 70, 95, 120, 150, 185, 210, 240, 300, 400, 500, 630, 800 |
AAC | All Aluminum Conductor | |
AAAC | All Aluminum Alloy Conductor | |
ACSR | Aluminum Conductor Steel Reinforced |
|
