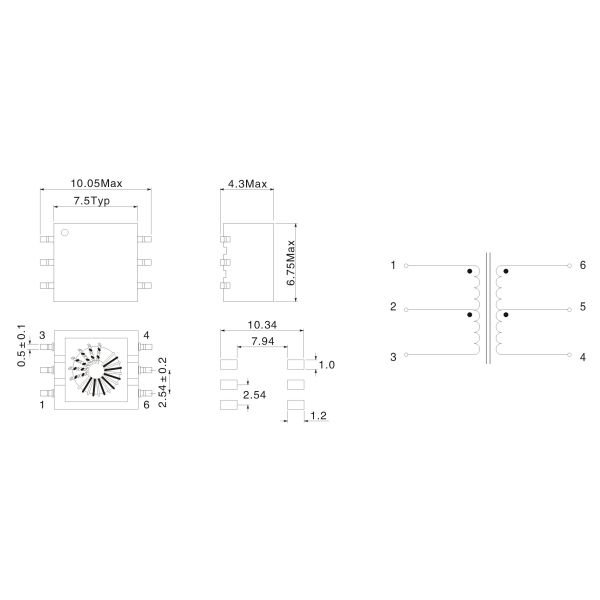

6 Pins Low Profile LAN Isolation Transformer For Switching Power Supply / LED

HS2410/2411 Series 1000 Base-T Magnetics modules,Ethernet Magnetics Lan Transformer,Surface Mount Lan Transformer

FEATURES:

• L(1-3): 350uH Min@100KHz,0.1V
• Lk(1-3): 1.0uH Max@100KHz,0.1V
• DCR(1-3): 0.4Ω±20%
• DCR(6-4): 1.15Ω±20%
• Turns ratio: Pin(6-4):Pin(1-3)=3.45:1±2%
• Hi-Pot: 3125Vac,1mA,3S Pri to Sec
• Operating temperature: -40℃ to 105℃(Include temp. rise 40℃)
• Storage temperature: -40℃ to 105℃
