Military Data Bus Transformer MIL-STD-1553 MIL-PERF-21028 Replacement For PM-DB2762

SHINHOM 1553B data bus transformers services the defense, aerospace, automation, communications, power, medical, and government industries, among others. Our data bus transformers are built for optimum performance in the most demanding of these applications. Each data bus transformer is designed specifically to meet the MIL-STD-1553 and MIL-PERF-21028 requirements. Our low profile single and dual data bus transformers are designed and built to last.

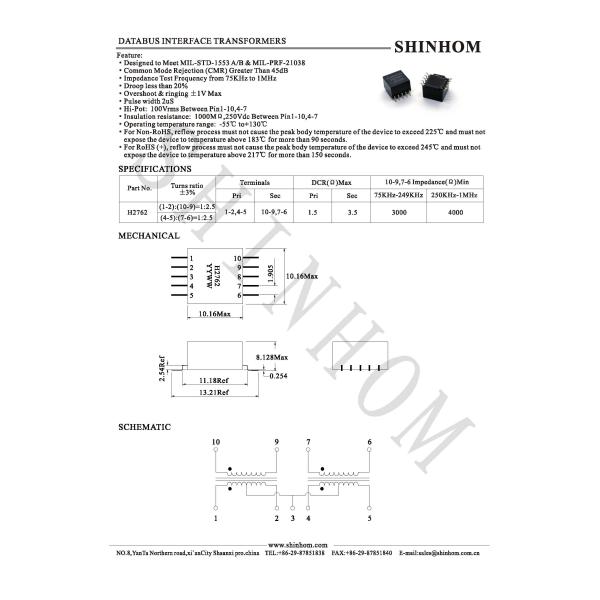

Feature

• This transformers fully meet MIL STD 1553B Command/Response Multiplex Data Bus requirements.
• They also meet MIL-T-21038 Pulse Transformer Specs.
• Applied standards: ESCC 3201 generic specification for space products
• Epoxy molding in accordance with outgassing requirements of ECSS-Q-ST-70-02C
• Common-mode rejection (CMR) rate of greater than 45dB
• Droop of less than 20%
• High Input Impedance (3,000Ohm to 7,200Ohm)
• Impedance Test Frequencies from 75KHz to 1MHz
• ±1 V maximum overshoot and ringing 2 µs
• Pulse width Conforms to MSL (Moisture Sensitivity Level) 3
• This transformers feature a high efficiency design for minimum losses.
• All windings are centertapped for greater circuit application flexibility.
• The series is packaged in a printed circuit style configuration, with a low profile configuration.

Applications

• Actuation and Instrumentation
• Air Traffic Control
• Communications
• Fly-By Wire Flight Control
• Propulsion Control
• Sensor Interfaces
• Stores Management

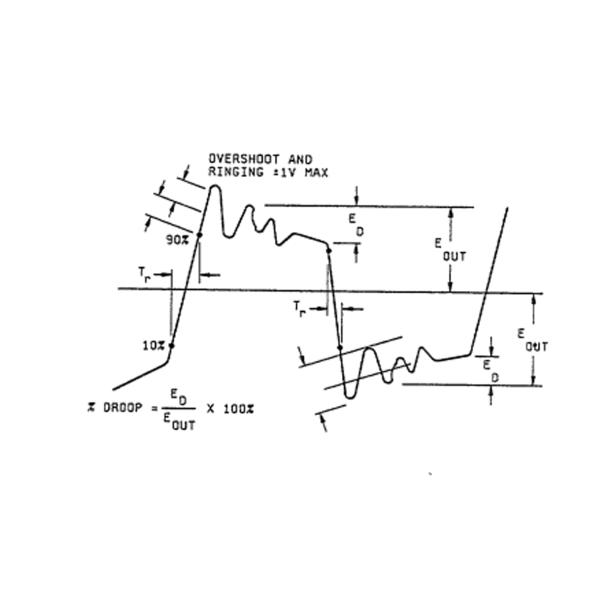

Typical Output Waveform for Test Circuit on Droop, Rise Time, Pulse Width
