 Multi function Electric Surgical Operating Table For C - Arm Photography Examination

Categories Surgical Operating Table
Place of Origin: Zhangjiagang, China
Brand Name: MEDIK
Certification: CE, ISO13485
Model Number: YA-XD1A updated model
MOQ: 1 unit
Price: To be confirmed according to your order
Packaging Details: Exportation standard carton or wooden case
Delivery Time: 15-30 days
Payment Terms: T/T, L/C, West Union
Supply Ability: 200 units per month
Name: Multi function Electric Surgical Operating Table
Overall size: 2030*555*750-1000mm
Motors: 8 Motors
Mattress: Polyurethane shaped mattress
wheels: Dia 125mm
Loading capacity: 200kgs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

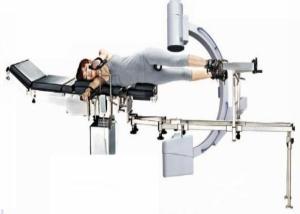

 Multi function Electric Surgical Operating Table For C - Arm Photography Examination

OEM Electric Surgical Table Operation Table With 8 Motors For Movements

Specification:

ModelYA-XD1A updated model
Overall size (L*W*H)2030*555*750-1000mm
Headrest max upward and downward angle by gas spring40°/90°
Backrest max upward and downward angle by electrically70°/22°
Trendelenburg and Reverse-trendelenburg angle by electrically24°
Height adjustable by electrically750-1000mm
Lateral tilting angle by electrically≥22°
Horizontal and longitudinal movement by electrically350mm
Waist board lifting by mechanism system110mm

Leg section movements by electrically

(Left and right section move together or separatedly)

90°/15°/90°
Wheels with twin-wheel central braking systemDia 125mm
Loading capacity200kgs

Key features:

  • CE&ISO certified German Trumpf similar model electric Electric Surgical Operation Table with 8 Motors For Movements CE ISO
  • Mechanical system for waist board lifting of electric operating table
  • AISI304 stainless steel structure and chassis
  • Polyurethane shaped mattress which is easy to remove and clean
  • With lateral control system incoporated to side column
  • Four 125mm wheels for moving the OT table, which are with central braking system
  • With movements of horizontal and longitudinal for C-arm photography examination
  • With four 125mm wheels to move the table, which are with twin-wheel central braking system
  • Eight independent motors for movements of HI-LO, back section, Trendelenburg and ReverseTrendelenburg, Lateral tilting function, Horizontal and longitudinal movement (For C-arm examination), Leg section(separated left or right leg section, also left and right leg section as one united set), auto-contour of operating table
  • Gas spring for headrest movement
  • Mechanism system for waist board lifting
  • Leg section can be removable, then connected to orthopedic traction shelf directly
  • With lateral control system incoporated to side column, which is with blocking system for movements

Accessories:

  • Headrest 1pc
  • Armrest 1 pair
  • Waist support holder 1 pair
  • Shoulder support holder 1 pair
  • Leg support holder 1 pair
  • Footrest 1 pair
  • Anesthesia screen frame 1 pc
  • Body strap 1 set
  • Handset controller 1 pc
  • Lateral controller inner constructed on side of table 1 set
  • Motors 8 pcs

Catalogue download: Radiolucent Operating Table YA-XD1A update model.pdf
