Brand Name: | ZL |
Model Number: | ZL-9006B |
Certification: | CE,ISO |
Place of Origin: | CHINA |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 60 sets / month |
Delivery Time: | 5-8 work days |
Packaging Details: | Cardboard Pierce Strength Tester is packaged within wooden case. |
Product name: | Cardboard Pierce Strength Tester(Miro-computer Type) |
Accuracy: | ≤ ± 0.5% |
Measuring range: | (1 ~ 48) J |
Resolution: | 0.001J |
The head pressure: | (100 ± 2) kpa |
(100 ± 2) kpa: | Modular integrated thermal printer |
Dimensions: | 860 * 495 * 780 |
Weight: | 110kg |
Company Info. |
Dongguan Zhongli Instrument Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

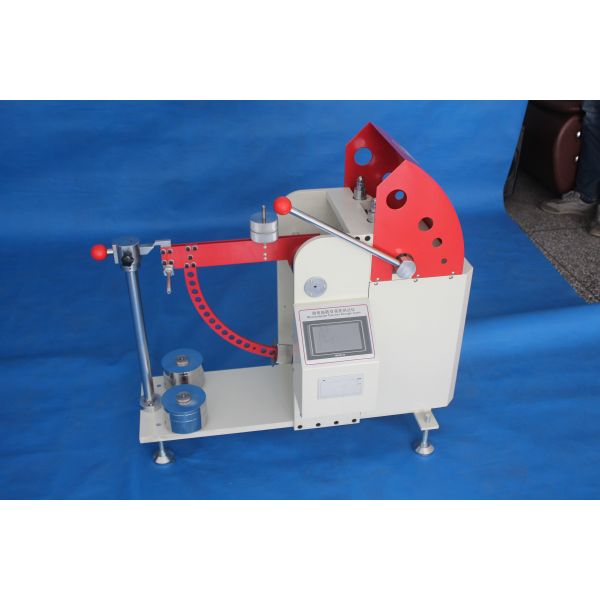

Fast Compression Cardboard Pierce Strength Tester( Miro-computer Type )
Product overview:
Microcomputer board puncture strength tester is corrugated board anti-puncture performance (ie, puncture strength) special test equipment. The board puncture strength tester with fast compression, operating handle automatic reset and safety reliability, with a liquid crystal display, thermal printer, etc., for a wide range cardboard carton production, research and inspection and other enterprises and sectors indispensable common instrument.
Board puncture strength testing machine technical parameters:
Position | A <6J B <12J C <24J D <48J |
Accuracy | ≤ ± 0.5% |
Measuring range | (1 ~ 48) J |
Resolution | 0.001J |
The head pressure | (100 ± 2) kpa |
Printout | Modular integrated thermal printer |
Dimensions | 860 * 495 * 780 |
Working environment | temperature (20 ± 10 ° C), humidity <85%, the horizontal panel |
Weight | 110kg |
![]() |
