Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation

Categories IoT Cloud Platform
Brand Name: Acrel
Model Number: AWT100-4G
Certification: CE
Place of Origin: China
MOQ: 1pc
Payment Terms: T/T
Supply Ability: 5000pc/day
Delivery Time: 5-8 work days
Packaging Details: carton
Product Name: Smart gateway
Certificate: CE FCC
Working Voltage: DC 12~24V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation

AWT100 Smart Gateway

Features:
■Using single-mode guide rail shape, small size, flexible and convenient installation;
■A variety of mainstream wireless modules, suitable for various on-site environments;
■Multiple hardware interface modes, easy to use with other products;
■Rich communication interface protocols can meet the different needs of customers.


The applicable industries are as follows:
■Wireless meter reading;
■Building automation and security;
■Robot control;
■Power distribution network monitoring, power load monitoring;
■ Intelligent lighting control;
■Automatic data collection;
■Industrial remote control and telemetry;
■Highway and railway data transmission;
■Other power and industrial control industries


Multiple communication methods



Functions


Dimensions



Parameters


Module NameAWT100-4GAWT100-NBAWT100-2G

AWT100-LoRa

AWT100-LW

Working frequency

LTE-FDD B1 B3 B5 B8

LTE-TDD B34 B38 B39 B40 B41

CDMA B1 B5 B8

GSM 900/1800M

H-FDD B1 B3 B8 B5 B20

GSM 850

EGSM 900

DCS 1800

PCS 1900

LoRa 460-510MHz


Transmission rate

LTE-FDD

Maximum downlink rate 150Mbps

Maximum uplink rate 50Mbps

LTE-TDD

Maximum downlink rate130Mbps

Maximum uplink rate 35Mbps

CDMA

Maximum downlink rate 3.1Mbps

Maximum uplink rate 1.8Mbps

GSM

Maximum downlink rate 107Kbps

Maximum uplink rate 85.6Kbps

Maximum downlink rate 25.2Kbps

Maximum uplink rate 15.62Kbps

GPRS

Maximum downlink rate 85.6kbps

Maximum uplink rate 85.6kbps

LoRa 62.5kbps
DownlinkRS485 Communication
Uplink4G CommunicationNB-IoT Communication2G CommunicationLoRa Communication
SIM card voltage3V, 1.8V/
Working currentStatic power: ≤1W, Transient power consumption: ≤3W

Static power: ≤0.5W,

Transient power consumption: ≤1W

Antenna interface50Ω/SMA(Faucet)
Serial port typeRS485
Baud rate4800bps, 9600bps, 19200bps, 38400bps(default 9600bps)
Operating VoltageDC24V or AC/DC220V
Operating temperature-10℃~55℃
Storage temperature-40℃~85℃
Humidity range0~95% Non-condensing

Dimensions

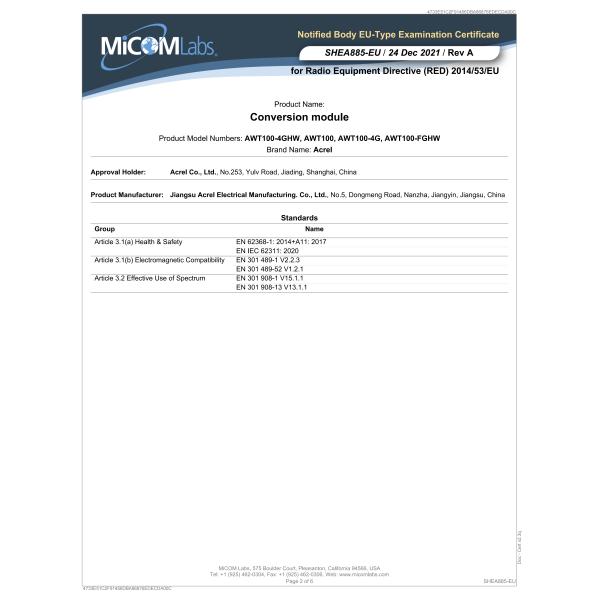

Certificate
