Categories | Ethernet Fiber Switch |
---|---|
Brand Name: | OEM/Takfly |
Model Number: | DF-1E-4EPI |
Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
Place of Origin: | Shenzhen, China |
MOQ: | 1 pcs |
Price: | Can be negotiated |
Payment Terms: | Western Union, MoneyGram, L/C, T/T |
Supply Ability: | 3000pcs/month |
Delivery Time: | 3-7 work days |
Product Name: | 5 Port 10/100M Industrial PoE Switch |
Working temperature:: | -40~+85℃ |
Storage temperature:: | -45~+85℃ |
Relative Humidity:: | 5%~95 %( no condensation) |
Fiber Media: | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
Warranty: | 5-years |
Weight: | Product Weight: 0.36KG |
Size: | Product size (L×W×H): 128mm× 86mm× 34mm |
Company Info. |
TAKFLY COMMUNICATIONS CO., LTD. |
Verified Supplier |
View Contact Details |
Product List |

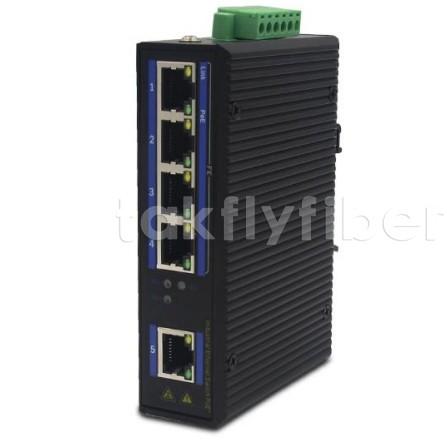

Overview
Industrial PoE switch, 4 Port 10/100Mbps PoE + 1 Port 10/100MbpsEthernet , for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection and 6KV port Lightning protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power .
Supports Relay output for power failure
IP40 protection.
Excellent heat elimination without cooling fan.
Redundant dual DC power inputs.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh industrial environment or higher requirement
6KV port Lightening protection
-40℃~+85℃ operating temperature range.
Technical Specification
Other Specifications
![]() |
