| Brand Name: | ADW Sunchip |
| Model Number: | AD-0160 box |
| Certification: | CE FCC ROSH |
| Place of Origin: | CN |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000 pcs per month |
| Delivery Time: | 1~3 days if have stock, 15-30 days if no stock |
| Packaging Details: | 1pc/box, 5pcs in a carton |
| CPU: | RK3588 Android 12 Device |
| GPU: | Mali G610 |
| NPU: | 6Tops |
| MCU: | for low power contro |
| RAM: | 4G/8GB/16G (optional) |
| Internal memory: | 32GB/64GB/128GB/256GB(optional) |
| Operating system: | Android 12 |
| Dual wired network: | Dual Gigabit Ethernet |
| Mobile Network: | Supports wireless 4G network |
| Bluetooth: | Bluetooth 5.0 |
| Power Supply: | 12V/3A |
| TF Card: | Maximum Support 64GB |
| Network: | WIFI, BT, LAN, 4G lte |
| Housing Material: | Metal |
| Application: | advertising display etc |
| Max Resolution Output: | 8K |
| Other Interface: | RS232 X1 |
| Display Port: | HD, DP, LVDS, |
| Company Info. |
| Shenzhen Sunchip Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

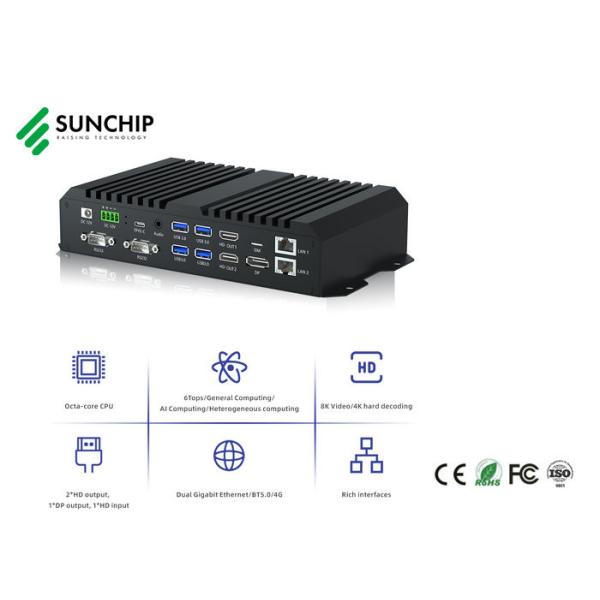

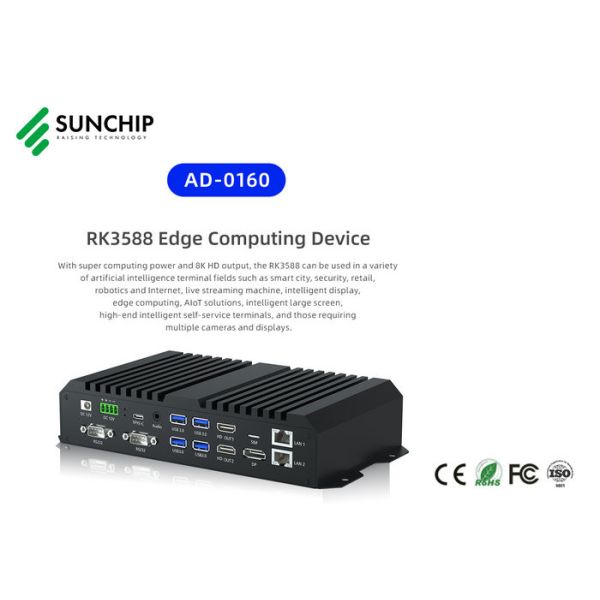

Product OverView:
-1. Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
-2. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.
-3. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Main Feature::
1. Octa-Core, 8K output, 4K hardware decoding;
2. Main frequency up to 2.4GhZ;
3. RK3588 performance is higher 3.3 times than RK3399
4. Android 12 OS;
5. Rich interfaces, including RS232,RS485, USB 3.0, HD -MI, DP, etc.
6. Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual Gigabit Ethernet ;
7. Build-in M.2 SSD Extended interface (SSD optional)
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8) | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 | |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 | |
| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 1 | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 | |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 2 | HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K) | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | |
| Environmental parameters | General working temperature/humidity | Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing) |
| General storage temperature/humidity | Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing) | |
| Housing | Color | Black |
| Material | Aluminum alloy + metal profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |
