| Categories | LED Point Lights |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | XQD |
| Model Number: | XQD-DZ104-I |
| Packaging Details: | XQD PACKING/customized |
| Supply Ability: | 50000PCS/Day |
| MOQ: | 1000 pieces |
| Price: | $1.10/pieces 1000-49999 pieces |
| Certification: | CE, RoHS, FCC |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item Type: | Point Lights |
| Light Source: | LED |
| Lighting solutions service: | Agi32 layout, Onsite metering, DIALux evo layout, auto CAD layout, Lighting and circuitry design, Project Installation, LitePro DLX layout |
| Input Voltage(V): | 12v |
| Lamp Luminous Flux(lm): | 54.7 |
| CRI (Ra>): | 80 |
| Working Temperature(℃): | -60 - 100 |
| Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | PVC |
| IP Rating: | IP68 |
| Warranty(Year): | 3-Year |
| Size: | 40mm*10mm |
| Certificate: | CE ROHS FCC |
| Power: | 1.44w |
| Weight: | 25G |
| Shell Material: | PVC |
| Life: | 50000H |
| LED Color: | RGB |
| Beam angle: | 120degree |
| Lamp Beads: | SMD5050*6 LED |
| IP Rank: | IP68 |
| Company Info. |
| Shenzhen Xinqidian Photo-Electric Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

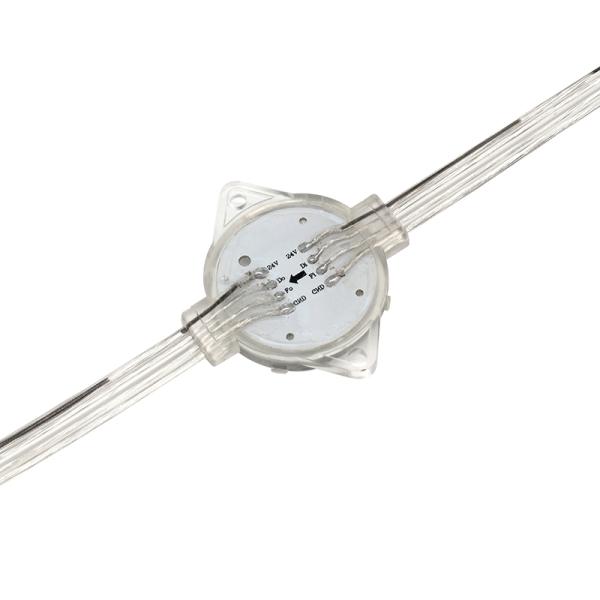

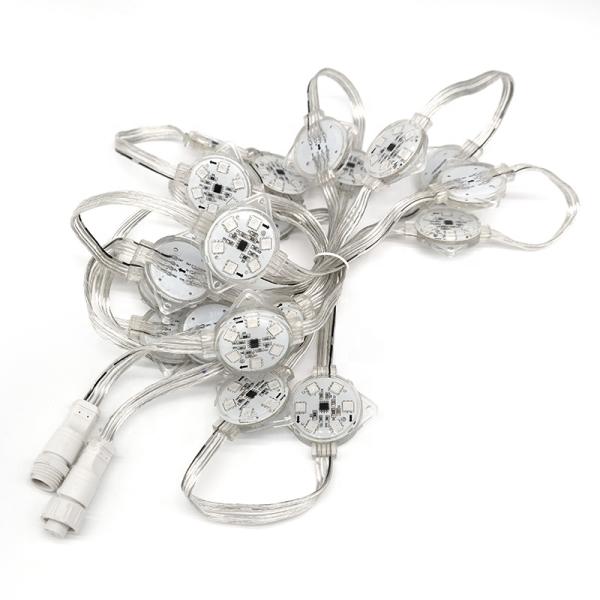

Building Project Customization Led Pixel Point Light RGB Control High Bright
Product features:

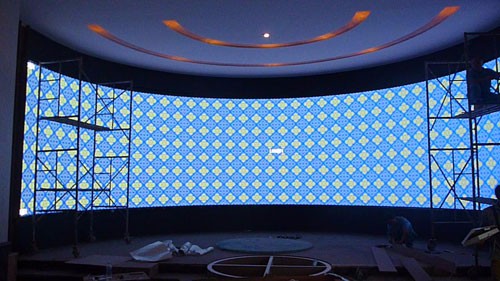

Building facade lighting: Point light sources can be used to
illuminate the building facade around the square, creating a
dynamic or static lighting effect through a carefully designed
distribution of light points to enhance the visual effect of the
building at night.
Signboards and billboard lighting: Point light sources can be used
to illuminate shop signs and billboards in commercial plazas,
making them more eye-catching at night and attracting customers'
attention.
40 Technical parameters of injection point light source
| Basic product parameters | Product protection parameter | ||
| Product model | XQD-DZ104-Ⅰ | Waterproof grade | IP66 |
| Product size | Φ40mm*10mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About23g | Salt spray test | Salt spray resistance |
| Shell material | PVC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 7CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x0.75mm²+2x0.35mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.44W |
| Color resolution | 3*8bit | Supporting system | |
| Lamp bead | SMD5050*6LED | Control system | DMX512 |
Applications:
Choose the right intelligent control system:
Type: Select the appropriate control system according to your
requirements, such as DMX512, DALI, Zigbee, Wi-Fi or Bluetooth
based control systems.
Function: Consider whether the system supports advanced functions
such as timing control, brightness adjustment, color change, and
scene presetting.
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotel,
meeting room, offices , hospital , schools , factories , commercial
lighting , shopping malls, supermarkets, kitchen, display,
backlight and so on.
Setting Information | ||
Item No | XQD-DZ104 | |
rated voltage | 24V | |
material | 1.44W | |
light color | FC/single | |
installation | embedded | |
view angle | 120deree | |
Diameter | 40MM | |
Shelf life | 3Years | |
1.We will reply your inquiry about our products or prices in
24hours;
2.Well-trained and experienced staffs will answer your enquiries in
fluent English;
3.We could accept OEM and ODM,and any your customized
Lighting&Controller,we could make your design become a real
product;
4.Distributorship are offered for your unique design and some
current models.
5.Protection of your sales area,ideas of design and all your private information.
|
