| Categories | Allen Bradley Modules |
|---|---|
| Brand Name: | 1762-IQ16 |
| Model Number: | 1762-IQ16 |
| Certification: | CE |
| Place of Origin: | MALAYSIA |
| MOQ: | 1pc |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Delivery Time: | on request |
| Packaging Details: | standard carton packing |
| Type of electric connection: | Screw connection |
| Nominal Impedance: | 3 kOhm |
| Number of commons: | 2 |
| Heat dissipation, max: | 5.4 W @ 30V |
| Bus current draw, max: | 70 mA @ 5V DC (0.35 W) |
| Weight: | 230 g |
| Company Info. |
| SC Automation Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
The 1762 input module is suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution degree 2(1)) and to circuits not exceeding Over Voltage Category II(2) (IEC 60664-1)(3).
1762 Input Module

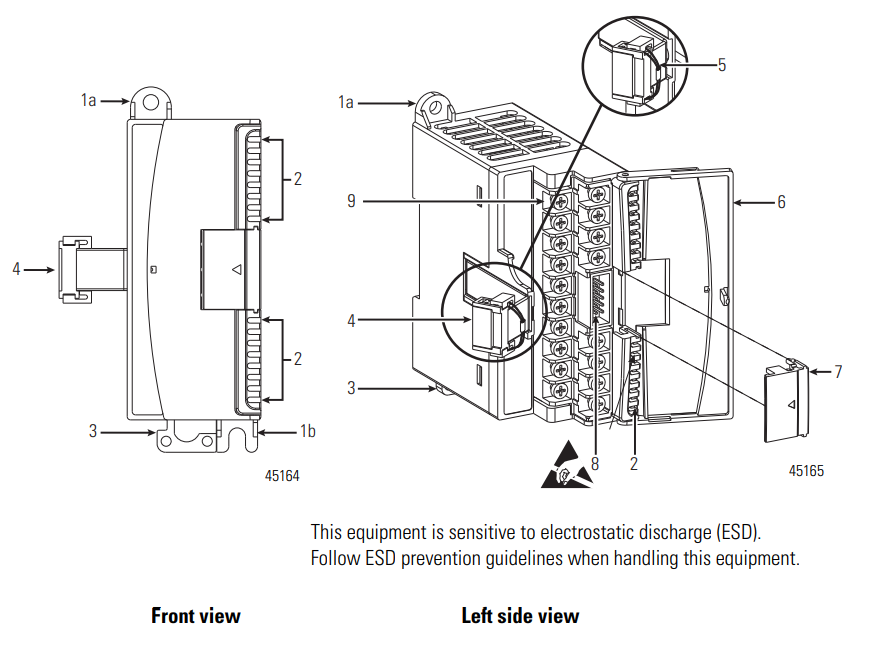

Module Description
Description | Description | ||
1a | Upper panel mounting tab | 5 | pull loop |
1b | Lower panel mounting tab | 6 | module door with terminal identification label |
2 | I/O diagnostic LEDs | 7 | bus connector cover |
3 | DIN rail latch | 8 | bus connector with male pins |
4 | flat ribbon cable with bus connector (female pins) | 9 | terminal block |
|
