High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors
Introduction
This is a specialized flame detector that combines both infrared
(IR) and ultraviolet (UV) sensing technologies to provide reliable
and fast detection of flames in hazardous, explosive environments.
By utilizing dual-spectrum detection, it offers enhanced accuracy
and false alarm immunity compared to single-spectrum detectors.
Applications:
Petrochemical refineries and processing plants
Oil and gas facilities, including offshore platforms
Fuel storage and distribution centers
Munitions and explosives manufacturing sites
Chemical processing and storage warehouses
Other industrial locations with a high risk of fire and explosions
Specifications
| Working voltage | 24VDC |
| Interface | 1xNPT 3/4 |
| UV Flame Detector Detection Angle | 120 degree |
| Infrared Flame Detector Detection Angle | 90 degree |
| Level of protection | IP66 |
| Explosion Proof Level | Ex d lIC T6 Gb. Ex tD A21 IP66/IP67 T80℃ |
| Alarm Status | ≤50mA/24VDC |
| Fire response time | ≤10S |
| Detection range | Level I 25meters(33cm*33cm Ethanol fire) |
| Working environment | humidity ≤95%RH, no condensation |

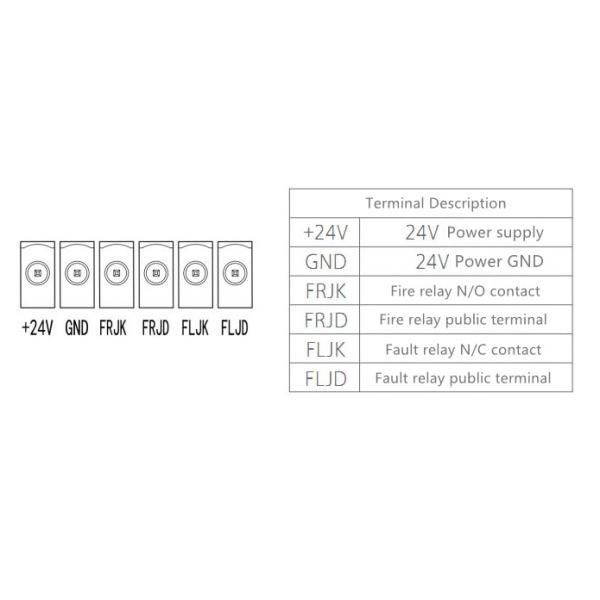

Terminal discription
Product range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 10 working days lead time.
5. Welcome sample order.
|
