3.5′′ 320 *240 IPS LCD Module With Full Viewing Smart LCD Display For Home

3.5′′ 320 *240 IPS LCD Module with Full Viewing Smart LCD Display for Home

A. Basic Info.

B.Product Description

3.5'' 320 *240 IPS lcd module with full viewing smart LCD display for home

ESHX3504-320240TBBIG01-RF is a 3.5inch LCD display in Italy display module with optional resistive touch screen and capacitive touch screen control with a resolution of 320×480 pixels. This size TFT LCD monitor is portrait mode, TFT panel adopts IPS panel, Left: 80/Right: 80/ Top: 80/ Bottom: 80 degrees (typical). Optional RTP or CTP.

This ESHX3504-320240TBBIG01-RF module has built-in ST7796S controller IC, supports RGB (18bit) interface, the power supply voltage (VCC) range is 3.0V to 3.6V, the brightness is 480 nits (typ), and the contrast ratio is 800:1. The module is Ideal for industries such as beauty equipment, communication equipment, etc. The module can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°C

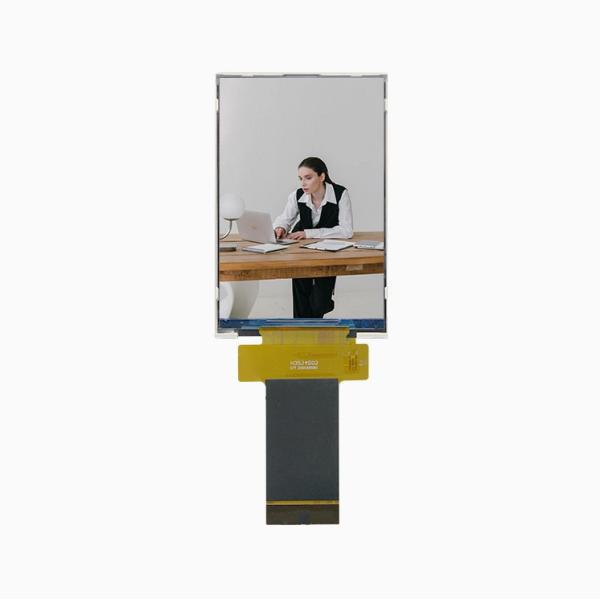

C. Product Picture

D:Drawing

E: TFT Product Knowledge

tft substrate input and CF substrate input flow chart as below

TFT structure as below

F: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module

• Huaxin Technology (Enshi)Co.,LTD
• Hubei.Enshi
• Date of foundation:2009
• high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
• LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
• LCM includes: COB,TBA, COG,TP,LED backlight and other series
• register capital:twenty million
• current staff:500+
• RD accounts for 10%
• QC accounts for 15%

G: Production Capacity

H: Product Application

1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance

I: TFT Display Characteristics

1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.

2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.

3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.

4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.

5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.

6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.

7.Wide Applications:
