Low Thermal Expansion Rate Ceramsite Foundry Sand Fused Ceramic Sand 14#-270#
1. Product Description of Ceramsite Foundry Sand
Ceramsite Foundry Sand is also called as Fused ceramic sand,it selected the calcined bauxite
as main material, then fused, sprayed,screened into different specifications,which is mainly
used for foundry industries.
It is an advanced substitute for quartz sand.
2. Main Technical Data
| Commodity | Main Chemical Index | Main Physical Index |
Ceramsite Foundry Sand | Al2O3 ≥75% Fe2O3 ≤3% SiO2≤18% TiO2≤3.5% K2O3+Na2O <1% CaO+MgO<1% L.O.I <0.3% | Shape: Spherical Color:Gray Brown Refractoriness:≥1790 ℃ Bulk Density:1.9-2.1g/cm3 True Gravity:3.30g/cm3 Coefficient of Expansion:0.13% (Heat 10Minutes under 2000℃) PH:7-8 Thermal Conductivity:0.698W/m*K (Heated Surface 800℃) Angle coefficient:≤1.1 (Very similar to spherical) Water Content≤0.1% Mud Content≤0.1% Average Coefficient of Linear Expansion≤6*10-6℃-1 |
| Grit Size | 14#,20#,30#,40#,50#,70#,100#,140#,200#,270# | |
| Section Sand | 14/20,20/30,20/40,20/50,30/50,40/50,40/70,50/100 | |
| 50/140,70/140,70/200,100/200,140/270,200/270 | ||
| Remark | Special specification can be customized | |
3. Main Features of Ceramsite Foundry Sand
Dense structure,smooth surface,good fluidity and filling;
Low thermal expansion rate, high product size accuracy, few cracks and defects, high casting yield;
Good crushing resistance: Ceramsite hasdense structure and high strength, it is not easy to be broken
down after repeated regeneration, high recycling rate and low waste sand emission rate
Low bulk density: ceramsite has lower bulk density compared with the one of zicon sand and Chromite
ore,which will reduce the cost of high quality molding sand.

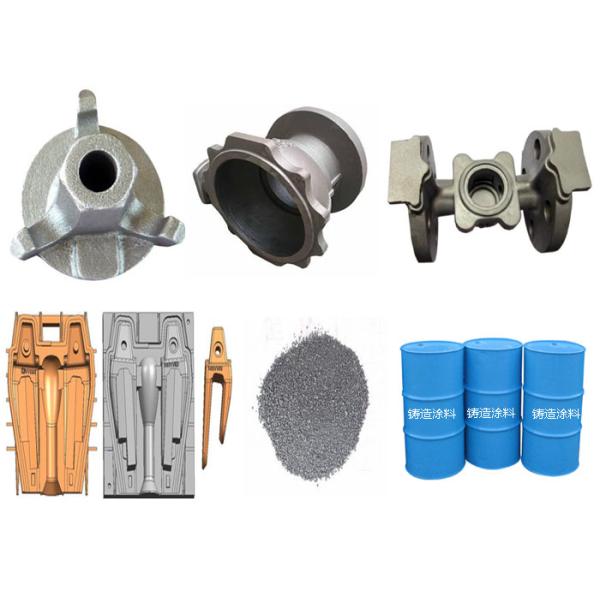

4. Main Applications:
Widely used for resin sand casting, coated sand, refractory coating and lost foam casting, V method
casting, shell casting, precision casting;
Widely used in casting molding process such as aerospace, shipbuilding, railway locomotive, wind power,
high-end pump valve, machine tool, engine, auto parts, mining machinery and other industries.
Widely used in Ladle drainage sand, soluble mold core, surface shot peening, etc.
5. Why Ceramsite is widely used in casting industry?
Ceramsite is one non-quartz type artificial sand, which can greatly improve the quality of castings, easy
to be cleaned , and the sand matching process is simple and convenient, which can reduce the coating
cost of most castings, especially suitable for making high-quality castings;
Ceramsite has the advantages of high refractoriness, good fluidity and high air permeability, which can
solve the defects in the casting production to a certain extent;
Ceramsite effectively solves the problems of high casting cost and poor casting quality.
Therefore, it is gradually replacing quartz sand or forsterite sand, then widely used in the casting industry.
|
