2.7-inch TFT LCD module Low power consumption and stable drive Wide operating temperature

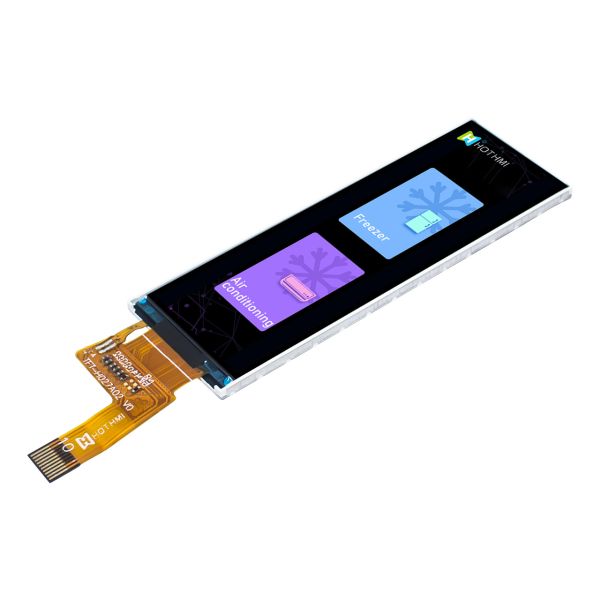

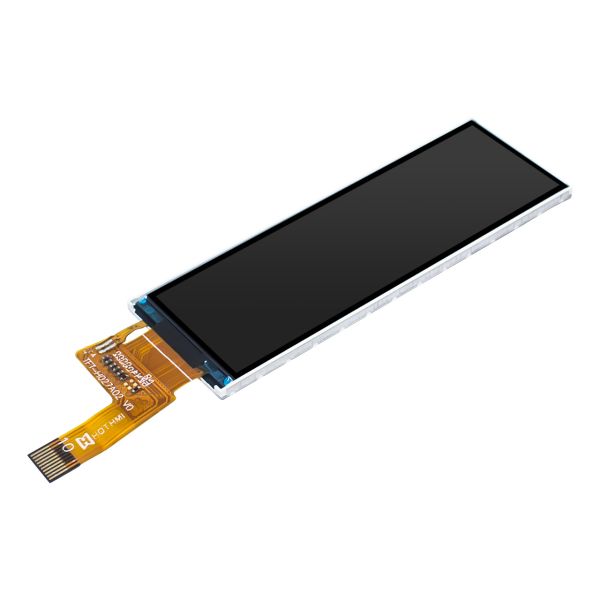

The 2.7" TFT LCD Display TFT-H027A02ZPINV5N10 redefines small display solutions with high-definition picture quality and long-lasting reliability. The display uses 142×428 pixel resolution and NTSC 70% wide color gamut technology to present bright and rich colors and details, fully meeting the needs of high-precision visual presentation in industrial, medical and other fields. This 2.7" TFT LCD Display excellent durability supports a wide operating temperature environment of -30℃ to +80℃, and with the Normally Black mode design, it can maintain clear contrast even under strong light conditions, ensuring stable display effects in outdoor or high-light scenes.

To enhance the user experience, the product adopts a 3.0~3.3V low-power design, combined with an efficient 4-wire 8-bit serial interface, to achieve a perfect balance between fast response and energy-saving performance. Through the intelligent screen saver function (it is recommended to refresh the screen within 2 minutes or use dynamic images) and 500 cd/m² high-brightness constant current backlight drive, the image retention problem is effectively eliminated and the screen life is significantly extended.

The 2.7" TFT LCD Display has achieved a breakthrough in mechanical strength and signal stability with its compact structure (27.13±0.5mm) and PI reinforcement board design, and the gold finger interface design further simplifies the integration process. Compatible with Vf=3.0~3.4V backlight drive solutions, the plug-and-play feature allows it to quickly adapt to diverse scenarios such as industrial HMI, portable instruments, vehicle-mounted equipment and smart home control panels. Whether it is a harsh outdoor environment or high-precision display requirements, TFT-H027A02ZPINV5N10 can light up every frame with professional quality, providing reliable support for product development.

This 2.7" TFT LCD Display Technical parameters: 2.7-inch TFT display, NV3007 driver chip, 4-wire serial interface, brightness 500 cd/m², storage temperature -20℃~+80℃.

Search keyword: tft 2.7, tft 2.7", 2.7 tft lcd, 2.7" tft lcd, 2.7 inch tft lcd, tft lcd 2.7, 2.7 tft display, 2.7" tft display,2.7 inch tft display, tft display 2.7, tft display 2.7"

https://www.display-lcd.com/data/upload/admin/202504/680b273c934ec.pdf
