3.5-inch IPS TFT LCD module display/480x800 dot matrix high resolution/ST7701S/color screen module/RGB+SPI/readable under sunlight

3.5-inch IPS TFT LCD module display/480x800 dot matrix high resolution/ST7701S/color screen module/RGB+SPI/readable under sunlight

Key Features:

▶ Model: TFT-H035A24WVIST8N40

▶ Type: TFT vertical screen

▶ Display pixels: 480x800 Px

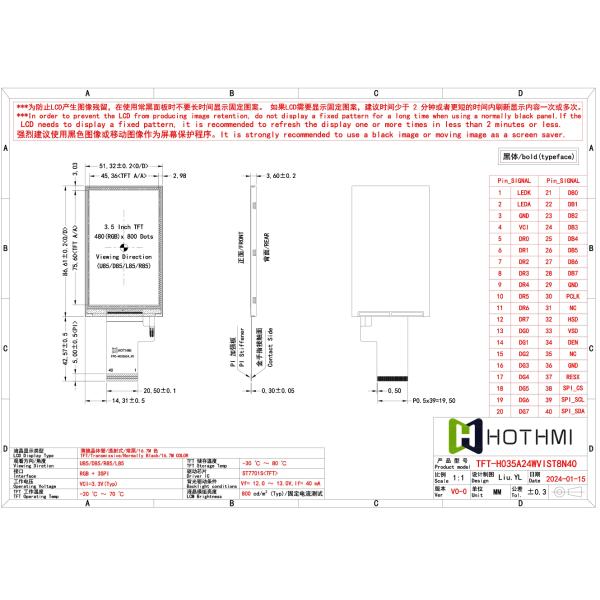

▶ Overall dimensions (mm): 51.32x 86.61x 3.6

▶Display inches: 3.5"

▶ Effective size (mm): 45.36x75.60

▶ Application: STM32/RK series

▶Viewing angle: IPS (U85/D85/L85/R85)

▶Brightness: 800cd/m2

▶ Pin: FPC-40PIN

▶Interface: RGB+SPI

▶ Special reminder: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶Power supply voltage: 3.3V

▶ Driver chip: ST7701S

TFT-H035A24WVIST8N40 | 3.5-inch IPS TFT LCD | RGB+SPI interface | 480x800px high-resolution LCD screen | Optional capacitive touch/resistive touch

TFT-H035A24WVIST8N40 is a 3.5-inch IPS full-viewing color LCD module, 480x800 resolution, built-in ST7701S controller, optional resistive touch screen and capacitive touch screen (built-in GT911 controller), high image quality, wide viewing angle, Support RGB interface, 8080 8-bit, 9-bit, 16-bit parallel interface and 3-wire, 4-wire serial interface, 16.7M true color, FPC connection (optional connector), 3.3V voltage, support horizontal screen Or display vertically. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.
