Android 13 Edge computing player box RK3588 Industrial ARM Board 8K Octa Core Dual 1000M RS485 RS232 Media Player

Product Model: AD-0160 BOX

Product Name: RK3588 Edge Computing Device

Rockchip RK3588 Octa-core ARM board

RS232 RS485 8K industrial-control box

Product OverView:

1, Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.

2, Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance. 3, Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.

Product Features:

1, Support multiplexed display (single-port maximum support 7680*4320 60HZ)

2, Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.

3, Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.

4, Multiple USB interfaces, RS3232, RS485 serial ports.

5, Strong resistance to electromagnetic interference and electromagnetic compatibility.

Main Features:

1, Octa-Core, 8K output, 4K hardware decoding;

2, Main frequency up to 2.4GhZ;

3, RK3588 performance is higher 3.3 times than RK3399

4, Double-layer board;

5, Android 12 OS;

6, RAM: 8GB/16GB optional

7, ROM: 32GB/64GB/128GB/256GB optional

8, Dimension 244*128*49.5mm

9, Rich interfaces:

HDMI output *2; DP output *1; HDMI input *1;

USB 3.0 *4; RS232 *2; RS485 *1; DC-IN *2; Audio *1; Type-C *1; Speaker *1;

1000M Ethernet *2; 4G SIM Card Slot *1;

10, Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;

Build-in M.2 SSD Extended interface (SSD optional)

Product Specification:

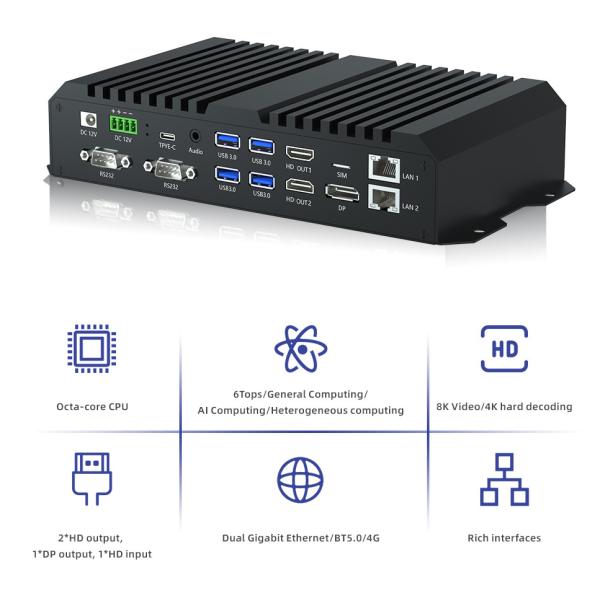

Product Pictures:

SUNCHIP Office:

Good quality RK3588 industrial-control player box 8K Octa-Core Edge Computing BOX from SUNCHIP

SUNCHIP product list:

SUNCHIP product list:

●Android Embedded ARM Board,

●Digital Signage Media Player Box,

●AI / IOT & 8K/4K Player Box,

●Open Frame LCD Display Signage,

●All-In-One LCD Digital Signage Display,

By the way, all of our Android industrial Embedded ARM board and other products are based on these cpu solutions, such as,

●RK3588,

●RK3399,

●RK3288,

●RK3568,

●RK3566,

●RK3328,

●RKPX30,

●RK3188,

●RK3128,

●etc. from Android 7.1 to 12 OS version.

Shenzhen Sunchip Technology Co., Ltd is a distributor and solutions provider of Allwinner, Rockchip and Espressif SOC, and a leading supplier of AI robots, video encoding & decoding products, intelligent terminals, commercial&industry devices and IOT products.

At present, Sunchip's products include AI education robots, sports cameras,industrial ARM motherboards, TV boxes, VR/AR all-in-one, interactive lcd digital signage. Sunchip are committed to the development of AI, VR, AR, IOT technology, with the professional R&D team, Sunchip has mastered a complete set of high definition video encoding&decoding solutions and technology on mass production. Sunchip offers one-stop service for product conceptualization, software&hardware design and development, manufacturing, and after-sales support and diversified delivery methods on SOC, PCBA hardware + software integration, software customized development, OEM / ODM products, etc for customers around the world.

HARDWARE DESIGN

We are providing services & solutions in electronic board design for digital signage industries & domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as Wearable devices, Industrial Automation, Smart home, Consumer electronics, Embedded digital signage devices and sensors.

Sunchip team of engineers and technicians are experienced in developing advanced embedded products utilizing all aspects of electronic technology. We have a strong expertise in advanced, high-speed, complex board design and development. Our exposure to complete product development life cycle from paper specification to architecture definition, from proof-of-concept to component selection and placement, from PCB layout to PCB fabrication and production ready hardware platform.

ODM
