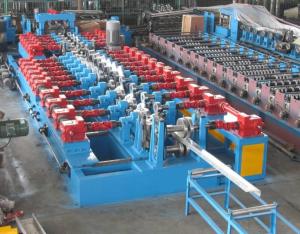

4mm Thickness Galvanized Steel C Z Purlin Roll Forming Machine with Gearbox transmission 17 steps of forming

4mm Thickness Galvanized Steel C Z Purlin Roll Forming Machine with Gearbox transmission 17 steps of forming

Technical Parameter

1. The specification of the rolling production (mm): 80-300×L (see appendix 1)

2. The speed of the roll-in: 12-15M/min

3. The number of the roller: 17

4. The material of the roller: use the excellent hammered steel Cr15 to be quenched as a whole, then to p rocess by numerical control.

5. The material of the principal axis: use the excellent steel No.45 to process.

6. The power of the principal electric motor: 22kw

7. Hydrodynamic station cut: 7.5kW

8. The size of the shape equipment: 10.3×2.3×1.2 (see the appendix 2)

9. The gross weight of the equipment: 15T

10.Accessories: one set of the stacking shelf, one set of leveling mechanism, one set of punching and cutting

mechanism, one set of hydrodynamic station, one set of computer control system (Panasonic programmable

PLC, touchable display screen, a series of Panasonic transducers, and OMRON encoder) a set of material

shelf.

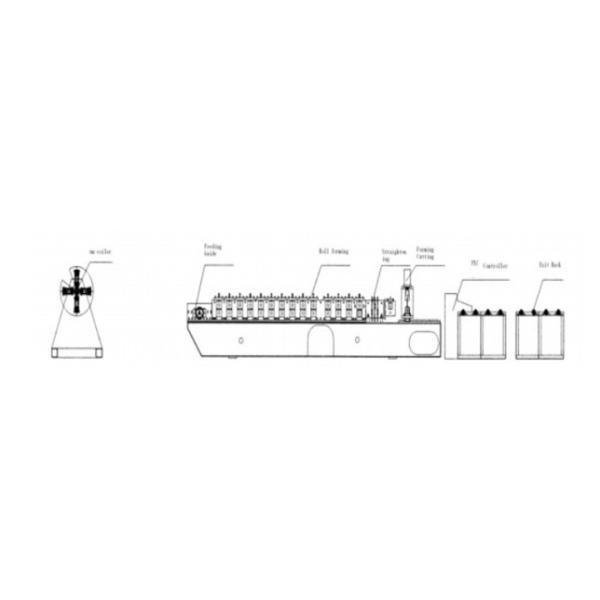

Working Flow

De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

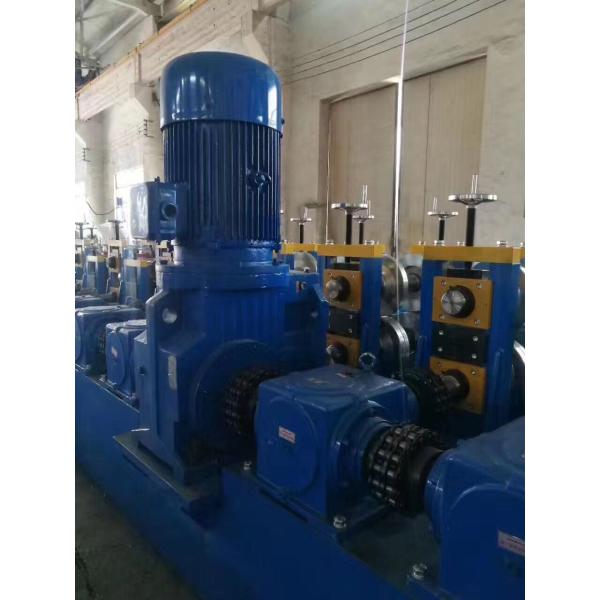

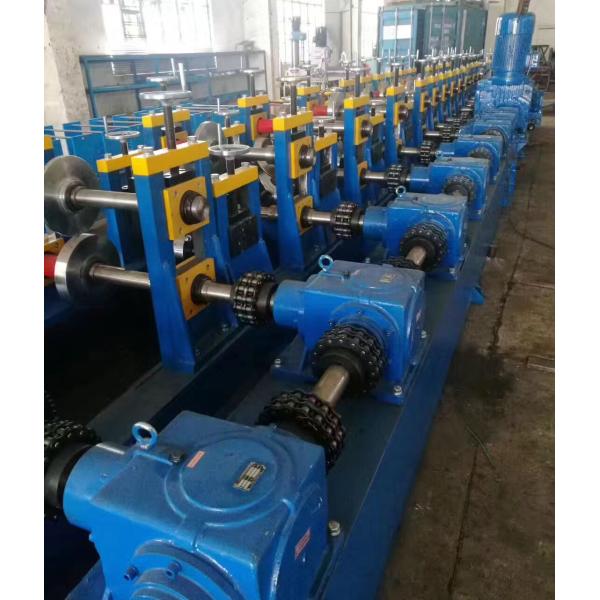

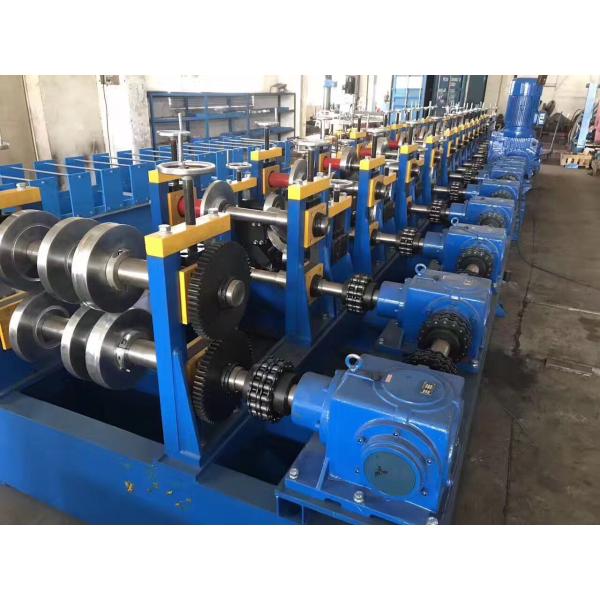

Main Components

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4)Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
