J Type RTD temperature probe with Mineral Insulated spring fixed bayonet

Customized J type thermocouple with Mineral Insulated spring fixed bayonet

Description:

1) Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.

2) A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.

3) Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.

Specification:

(1) Thermal potential

Heat characters: The temperature of thermocouple on flame is 600-700 cool characters: The temperature of thermocouple on flame is 600-700.

(2) Inner resistance

Accord to its type and length and the tolerance is in +_10% 10% as irequested.

(3) Length

According to request of customers

(4) Forehead & terminal

According to request of customers

Advantage:

1, High accuracy, good stability

2, popular and economic

3, Wide temperature range: 0-1300

4, 100% qualified factory test.

Related products:

Application:

• Food processing equipment

• De-icing

• Plating baths

• Industrial processing

• Medical equipment

• Pipe tracing control

• Industrial heat treating

• Packaging equipment

• Liquid temperature measurement

• Refrigerator temperature control

• Oven temperature control

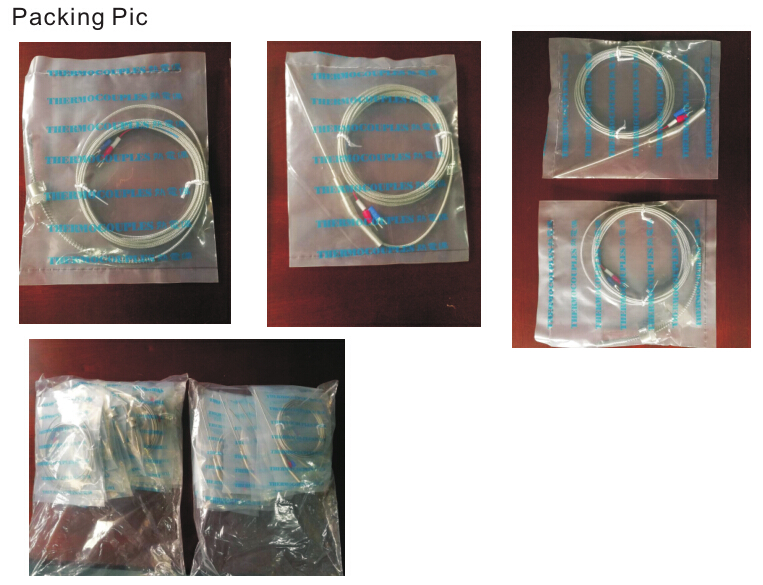

Packing:

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.

More details, you can also visit our website: http://www.gmemetal.com
