| Categories | Fire Testing Equipment |
|---|---|
| Brand Name: | Daxian |
| Model Number: | DX8333D |
| Place of Origin: | China |
| MOQ: | one set |
| Price: | Negotiation |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash |
| Supply Ability: | 15 sets per month |
| Delivery Time: | 15work days |
| Packaging Details: | Wooden Case |
| Temperature resolution: | 0.1 °C |
| Ignition time: | 0~99.99S |
| Specimen clip size: | frame 360mm × 100mm, inner frame 330mm × 50mm |
| Materials: | SUS304 stainless steel |
| Company Info. |
| DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

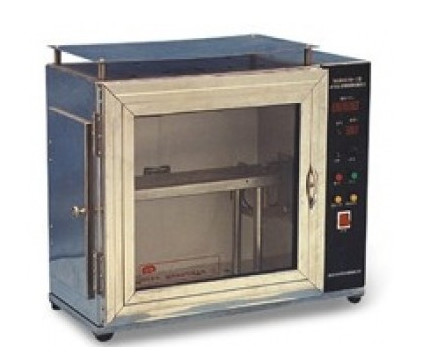

Combustion Properties of Textiles Testing Equipment Textile Horizontal Flame Resistance Test Chamber
Application:
It is mainly used for the determination of the combustion performance of various textiles in the horizontal direction, expressed as the flame spread rate.
Meet the standards: in accordance with the test standards of FZ/T01028-93 "Method for determining the combustion properties of textiles".
Technical Parameters:
1 Box temperature resolution 0.1 °C;
2Ignition ignition time:0~99.99S arbitrary setting, precision 0.01 seconds;
3 Igniter nozzle inner diameter: 9.5mm thick fabric: ¢ 20mm
4 Igniter nozzle tip and sample test distance: 19mm
5 Specimen clip size: frame 360mm × 100mm, inner frame 330mm × 50mm;
6 Chassis imported SUS304 steel plate, using high temperature air dispersion serpentine pipe forced exhaust;
7 The fixture parts are made of imported SUS304 stainless steel.
8 Imported 7-inch LCD color display +24 PLC output control, using sound and light output alarm;
|
