| Categories | Surge Protector Box |
|---|---|
| Brand Name: | BRITEC |
| Model Number: | TYB-100 |
| Place of Origin: | Zhejiang, China (Mainland) |
| MOQ: | 200 Piece/Pieces |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Delivery Time: | Shipped in 15-30 days after payment |
| Packaging Details: | EXPORT PACKING |
| Type: | Surge protector box |
| Item Name: | SPD box |
| Tu: | -40℃-85℃ |
| Color: | Black |
| Voltage: | 380~385V |
| Imax: | 100kA |
| Company Info. |
| Britec Electric Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Parallel Connect AC 230V / 385V Surge Protector Box with Surge
Counter
Technology characteristic:
Product Details:
| TYB-100 | |
| Working Voltage Un | 380V |
| Max. Continuous Operating Voltage Uc | 385V |
| Operating frequency Hz | 47~63Hz |
| Nominal Discharge Current (8/20μs) Ιn | 50kA |
| Max. Discharge Current (8/20μs) Imax | 100kA |
| Protection Mode | L1 / L2 / L3 - N, N - PE |
| Voltage Protection Level Up | ≤2.8KV |
| Response Time tA | ≤25ns |
| Connection | Parallel |
| Standard | Q/70924537-1.01-2000, GA173-2002, YD/T5098-2001 |
| Indication | Green / Red |
| Operating temperature range Tu | -40℃~+85℃ |
| Relative humidity | 5%~95% |
| Atmospheric pressure | 74.8kPa~106kPa |

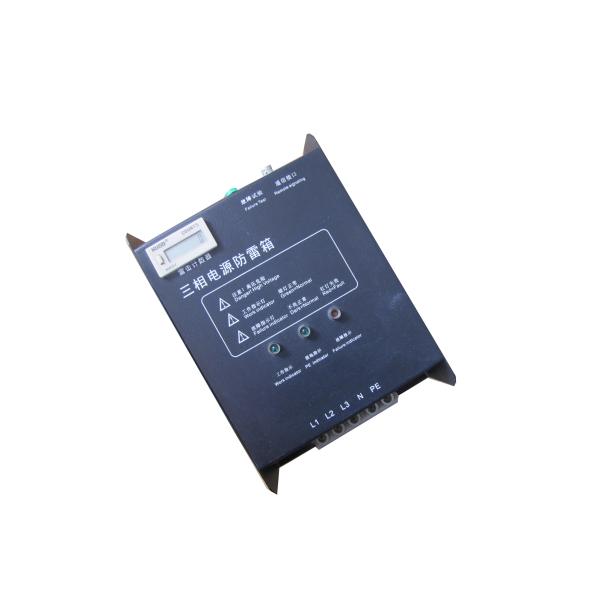

Product view:
Company introduction:
 | Britec Professional manufacturer of SPDs since 2003. Our products are TUV & CE certified and have been exported worldwide, including Europe, Russia, UK, Africa, Malaysia, Brazil etc. |
Packaging & Shipping:
• Package : Export standards carton or according to customers'
requests.
• Shipping : By express, by sea or by air.
FAQ:
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years
experience.
Q2: Can I get some samples before order?
A: Sure. We offer samples for quality check.
Q3: Do you have any MOQ for trial order?
A: MOQ is 100pcs.
Q4: What's your terms of payment?
A: 30% T/T in advance, balance before shipment.
Q5: Can you customize my products or put my logo on your products?
A: Yes, we offer OEM and ODM services. Please inform us formally
before production.
|
