| Categories | Barcode Scanner Module |
|---|---|
| Brand Name: | RAKINDA |
| Model Number: | LV3000H |
| Certification: | FCC, CE |
| Place of Origin: | Shenzhen, Guangdong, China |
| MOQ: | 1 pcs |
| Price: | Negotiation |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 PCS/ week |
| Delivery Time: | within 5 working days after receiving the balance |
| Packaging Details: | Normal craft paper and foam. |
| Resolution: | >=3 mil |
| Interface: | RS-232, USB |
| Dimensions: | 63(W)*45(D)*28(H) |
| Weigh: | 75g |
| Notification: | Beep, LED indicator |
| Drop: | 1.5m |

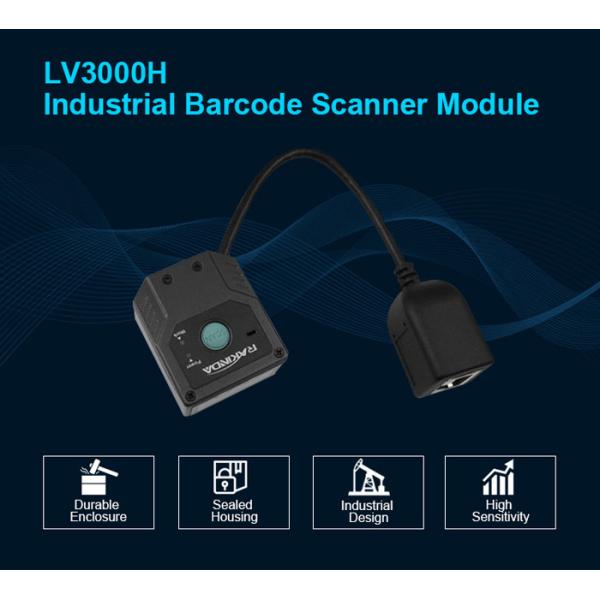

With High-level Decoding Chip and Intelligent Image Recognition System, LV3000H Can Easily Read Mainstream 1D/2D Barcodes With Fast Reading Speed and High Reading Performance.
Product Parameters
| Performance | Image Sensor | 1280*800 CMOS | |
| Illumination Aiming | White LED Laser Diode or Gree LED | ||
| Symbologies | 2D | PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect. | |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc. | ||
| Resolution | >=3 mil | ||
| Typical Depth of Foeld | EAN-13 | 55-360mm(13mil) | |
| Code 39 | 70-180mm(5mil) | ||
| PDF417 | 55-160mm(6.7mil) | ||
| Data Matrix | 50-170mm(10mil) | ||
| QR Code | 40-210mm(15mil) | ||
| Scan Mode | Sense mode, Continuous mode, Level mode, Pulse mode | ||
| Scan Angle | Roll:360d, Pitch:±55°, Skew:±55° | ||
| Field of View | Horizontal 51°, Vertical 32° | ||
| Min Symbol Contrast | 25% | ||
| Mechanical Electric | Interface | RS-232, USB | |
| Dimensions | 63(W)*45(D)*28(H) | ||
| Weigh | 75g | ||
| Notification | Beep, LED indicator | ||
| Rated Power Consumption | 1622mW(typical) | ||
| Operating Voltage | 5VDC±-5% | ||
| Current SVDC | Operating | 276.8mA(typical), 322.7mA(max.) | |
| Standby | 83.3mA | ||
| Environmental | Operating Temperature | -20℃ to 60℃(-4℉ to140℉) | |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ± 14kV (air discharge), ±8kV (direct discharge) | ||
| Drop | 1.5m | ||
| Sealing | IP68 | ||
| Certifications | FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC | ||
| Environmental | Cable | USB | Used to connect the LV3000U to a host device |
| RS-232 | Used to connect the LV3000U to a host device | ||
| Power Adapter | DC5V adapter to power the LV3000U with RS-232 cable | ||
|
