CE ISO CR Carbon Steel Slitting Machine / Steel Coil Slitting Line

Main technical parameter

Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Metal Coil Slitter Strip thickness: (5~20) mm
Strip width: 800~2000mm
Max.coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ260
Metal Coil Slitter Diameter of slitter shaft: Φ420
Coil Slitting Machine Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm.
Diameter of recoiler block: Φ800mm
Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 280KW, 315KW.
Coil Slitting Machine Slitting speed: (0~20) m/min, adjustable

High Precision Carbon Steel Stainless Steel Slitting Line Machine

Slitting Line Machine Profile:

Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.

Product Process:

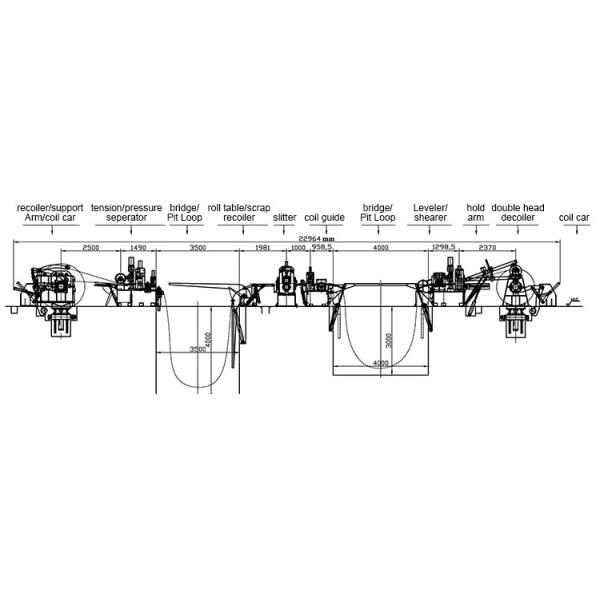

Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car

The Basic Parameters:

Other Model Of Slitting Line

Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
