Brand Name: | BZCN |
Model Number: | TS-B005 |
Certification: | SGS |
Place of Origin: | CHINA |
MOQ: | 1000 pcs |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000000 pcs per week |
Delivery Time: | 3 workdays |
Packaging Details: | 1000 pcs per bag |
Button color: | Red |
Operation Type: | Directly |
Current rate: | 0.5mA |
Voltage: | 12v |
Terminal Type: | SMD |
Terminal: | Copper |
Rectangular surface mount tactile switch offers 3 termination options:
1. Straight Lead
2. Reverse Lead
3. Side Retention Lead
This tact switch also offers reliable dome contact technology and a strong tactile feedback, with multiple operating forces to choose from. Applications for the switch include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation and computer/peripherals.
Features
●High operating force (3.0N or 3.6N) suited to automotive equipment
requirements
●Long life of 300,000 cycles realized despite the high operating
force
●Middle stroke (1.05mm)
Model No. | TS-B005 | |
Terminal Type | SMD | |
Switch Rating | 50mA DC 12V | |
Operation Travel | 0.2±0.1mm | |
Operation Tpye | Momentary | |
Operation Force | 160/180/250 gf | |
Operation Life | 300,000 Cycles | |
Contact Resistance | ≤100mΩ max | |
Insulation Resistance | ≥100MΩ/m DC 250V | |
Dielectric Strength | AC 250V/m 50Hz | |
Operation Temperature | -30℃ to + 85℃ | |
Operation Humidity | 25-85% RH | |
Solder Ability | 260±5℃ for 3 seconds |

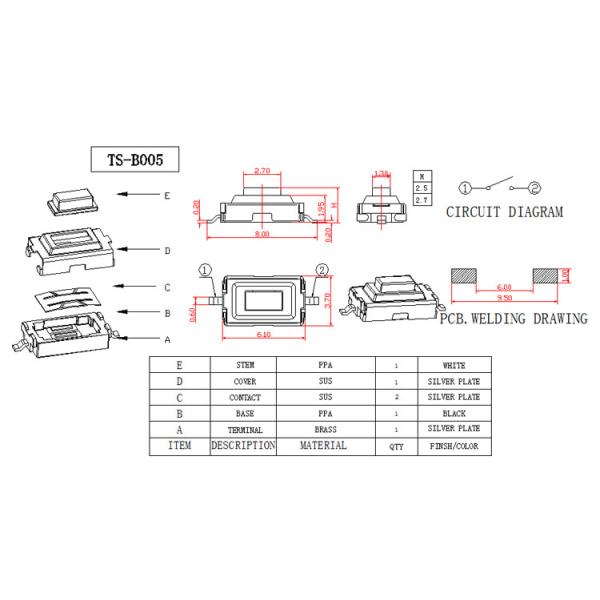

Drawing:
![]() |
