| Categories | Capacitive Proximity Sensor |
|---|---|
| Brand Name: | KJTDQ |
| Model Number: | JQ12M-ZPK-x2 |
| Certification: | CE, RoHS |
| Place of Origin: | Jiangsu,China |
| MOQ: | 5 pcs |
| Price: | $ 9.6-16.5 /pcs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 pcs/mouths |
| Delivery Time: | 7-10 work days |
| Packaging Details: | carton package |
| Sn: | 2mm |
| Name: | M12 Capacitive sensor |
| Operating voltage: | 10-36Vdc, 90-250Vac, 20-250Vac/dc |
| Output: | PNP/NPN,NO/NC |
| Material: | Metal/PBT housing |
| Operating temperature: | -25~75℃ |
| Frenquency: | 100HZ |
| Response time: | 1.5ms |
| Company Info. |
| View Contact Details |
| Product List |

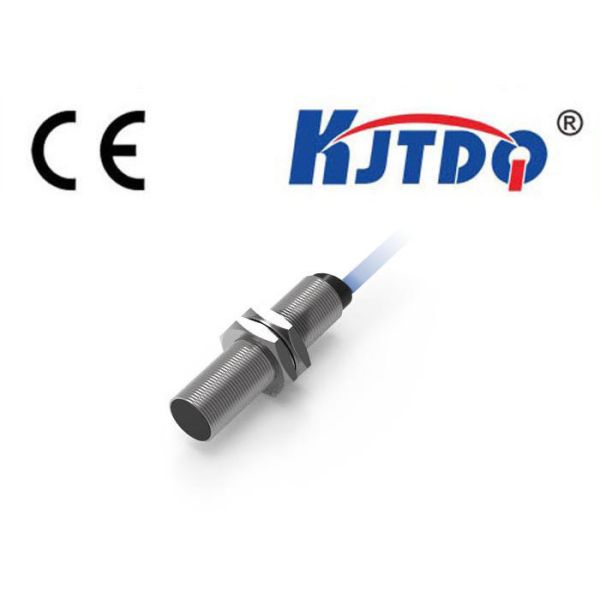

Name:M12 Capacitive proximity sensor
Output: Switching iutput
Distance: 2mm,
Mounting: Flush
| Mounting | Flush / Non-Flush |
| SN | 2mm / 4mm |
| Power supply | 10-36V DC |
| Housing size | M12*60 |
| Thread size | M12*50,M12*46 |
| Output | NPN/PNP NO/NC |
| Temperature drift | ≤±10% |
| Hysteresis | 1-20% |
| Repeat accuracy | ≤5% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Consumption current | ≤10mA |
| Protection circuit | surge, overload, short-circuit, reverse polarity |
| Indicator | Yellow LED |
| Ambient temp. | -25 ~ 150ºC |
| Ambient RH | 35-95% |
| Frequency | 500Hz |
| Protection degree | IP67 |
| Housing material | PBT |
| Connection | PVC Cable 2m |
Capacitive sensors are mainly used in food production, packaging,
agriculture, animal husbandry, plastics industry, woodworking,
chemical industry, semiconductors, pharmaceuticals, etc.
Competitive Advantage:
3 Adopts envelop glue, temperature resist, oil-proof colophony in it
FAQ:
Q: What's your warranty ? How about the quality of your sensors ?
A: 18 mouths .
We have the certification of ISO,CE,CCC.Our sensors can replace
many famous brand
sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,Schneider,KEYENCE,
BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and
we check whether can produce.
Q: Could KJT provide technology support?
A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide
suggestion from our engineer to help you solve problem.
|
