UTP And STP Cable Line Tester Electrical Wire Tracer High Precision Stable Performance

Categories Cable Line Tester
Brand Name: PEAKMETER
Model Number: PM6816
Certification: CE
Place of Origin: China
MOQ: 1
Delivery Time: 5-40 work days
Packaging Details: Product Size 241.5mm x78mm x38.5mm Product Weight Approx. 370g
Payment Terms: T/T
Supply Ability: 150,000 Pcs Per Month
Price: Negotiation
Function 1: Continuity
Function 4: Network Wire Collation
Function 2: Wire Track
Directly track wire type: RJ45, RJ11
Function 3: Sequence Collation
Product Name: Multi-function Cable Tracker
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

UTP And STP Cable Line Tester Electrical Wire Tracer High Precision Stable Performance

Multi-Function Wire And Cable Tracker Tester , Test Device Used With UTP And STP Wiring


Features of Cable Tracker Tester


  • Test line level, positive and negative polarity
  • Test the connection between network cable and switch port.
  • Check lead continuity

Main function
Wire TrackDirectly track wire type: RJ45, RJ11
Track other wire through the attachment
Sequence CollationOpen circuit, short circuit, detection of cable line sequence
Network Wire CollationIt can fully test the line sequence of network cable, open circuit, short-circuit, miswire, reverse connection and splitpairs
Telephone Line TestIdentify the state of working telephone line (clear, ring, busy)
ContinuityJudge continuity of the cables or wires
Switch Port CollationDetection switch connected condition
DC Level Test
General
Power SupplyEmitter: 3*1.5V AA Batteries
Receiver: 1*9V 6F22
SizeEmitter: 122mm*66mm*28mm
Receiver: 210mm*44mm*25mm
Net weightEmitter 99g, Receiver: 81.8g (None of the batteries)
Gross weight449g
Safety RatingCE CAT. Ⅲ 600V RoHS

Product Description of Cable Tracker Tester


Wire track: Directly track wire type: RJ45,RJ11;Track other wire through the attachment; sequence collation: Open circuit, short circuit, detection of cable line sequence.


  • Network wire collation: Test device used with UTP (Unshield Twisted Pair) and STP (Shield twisted Pair) wiring; Tests for open circuits, shorts, miswires, reversals, and split pairs;Allow one person to test T568A, T568B, 10Base-T, And Token Ring.Switch port collation: detection switch connected condition.
  • Telephone line test: Identify the state of working telephone line(clear,ring,busy).
  • DC level test: DC level test.Continuity: Judge continuity of the cables or wires.Category: CE CAT.III 600V RoHS.
  • Cable hunting: Directly hunt the cable with RJ11, RJ45 and BNC terminal and other metal leads through adaptor.
  • It can directly hunt cable when weak current equipment is turned on, such as Ethernet switch, router.
  • Test the status of telephone line: It can test the working status of telephone line and judge TIP or RING line.
  • Test network cable: It can fully test the line sequence of network cable, open circuit, short-circuit, mis wire, reverse connection and split pairs.
  • When cable is hunted, there is no strip off cable sheath, which is easy and quick to judge the location of breakpoint in cable
  • It provides low voltage prompt function and receiver has installed spotlight

Accessories


  • Test Cable (MS6816 two ends RJ11 Plug+ 6 Core flat cable/ total 180mm) x1
  • Test Cable (MS6816 two ends RJ11 Plug+ 6 Core flat cable + Alligator Clip (Red & black) Total length 200mm) x 1
  • Earphone cable x 1
  • Gift Box x 1
  • Portable bag x 1
  • Plastic Bag x 1
  • Manual x 1
  • Battery (PPPVCS9VE012/9V ) x 1
  • Battery (AA/1.5V Manganese Battery) x 3

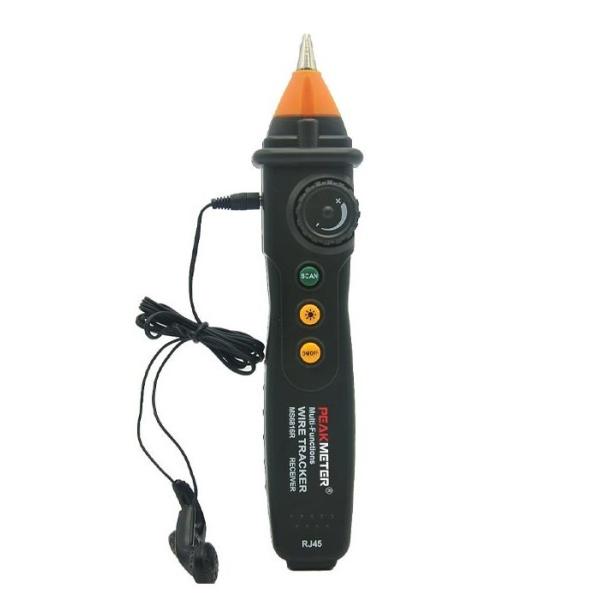

Detailed Images of Cable Tracker Tester
