| Categories | Open Frame LCD Monitor |
|---|---|
| Place of Origin: | Shenzhen China |
| Brand Name: | AXNEW |
| Model Number: | AXD-24OPN1P1-V1(VGA/DVI) |
| MOQ: | 10 Pieces |
| Price: | US$150-300/pcs |
| Packaging Details: | 10 Pcs /Carton with firm foam |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 3000 pieces/month |
| Certification: | CE FCC ROHS |
| Brightness: | 300cd/m^2 |
| Contrast Ratio: | 1000:1 |
| Screen Size: | 24 |
| Application: | Kiosk|Medical |
| Feature: | high definition|mini |
| Input signal: | VGA|DVI |
| Installation: | Rack Mount |
| Panel Type: | TFT |
| Power Input: | 12V |
| Product name: | Open Frame LCD Monitor |
| Company Info. |
| AXNEW DISPLAY TECHNOLOGY CO.,LTD |
| View Contact Details |
| Product List |

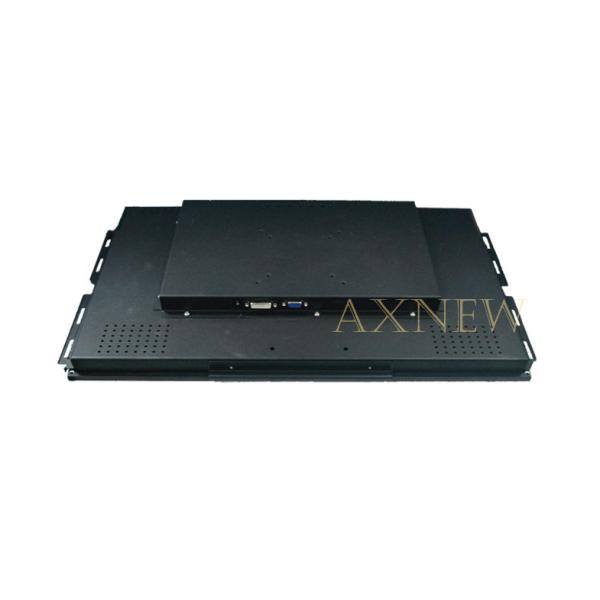

24" Open Frame Touch Screen Monitor Full HD , VGA DVI Color Open
Frame Tft Display
Display Specifications | |
Display | 24" Color TFT Open Frame LED monitor |
Model Name | AXD-24OPN1P1-V1 |
Active Display Area (mm) | 535.40(H)X303.0(V) |
Pixel Pitch (mm) | 0.276(H)x0.276(V) |
Resolution (Pixel) | WSXGA (1920X1080 FULL HD) 16.7M COLORS |
Brightness (CD/m^2) | 300cd/m^2 |
Contrast Ratio | 3000:1 |
Viewing Angle (CR >=10) | 178/178 |
Power consumption | 24.5 W typical, normal operation |
Touch Screen | SAW ;Resistive,capacitive ;IR Touch ;RS232/USB(Optional) |
OSD Control | On the back side |
I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
Power Input | DC 12V,4A 48W |
Mechanical Specifications | |
Construction | steel metal / Black color |
Dimensions | 548.0X324.0x 40.0(mm) |
Mounting | Embedded ,vesa 75x75(100x100) Wall Mounting Optional |
Power source | AC 100~240V/ 12V DC/AC adapter |
Environment Specifications | |
Operating Temperature | 0~50℃ |
Storage Temperature | -20~60℃ |
Rating | Facilitate installation of the demolition,solid portfolio |
Ordering Information | 24”OP wide screen open frame Monitor with VGA input and power adapter |
1. High Resolution with high contract LCD in stable supply
2. Slim and simple open frame to mount all the LCD kits in one ,
which is easily installed
3. industrial control board supports the displays working 24 hours
4. 170/160 wide viewing angle with high performance
5. VGA DVI interfaces ; touch screen options if requested
6. 24 inch open frame monitor for application control , advertising
player ,campus and industrial
terminals etc
|
