| Categories | Character LCD Display Module |
|---|---|
| Brand Name: | Qihang |
| Model Number: | JXL-0802-SJ |
| Certification: | ROHS/CE |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal |
| Supply Ability: | 300000 Per Month |
| Delivery Time: | 10-15 Days |
| Packaging Details: | Tray , Standard carton |
| Name: | Backlight STN FSTN Character Lcd Display Module |
| LCD Display Dots: | 8*2 dots matrix |
| Operating Temp:: | -20℃ - 70℃ |
| Storage Temp:: | -30℃ - 80℃ |
| Display Mode: | Positive |
| Polarizer Type: | Transflective |
| Outside Dimensions: | 58.5(H)mm x 32.5 (V)mmx 13.5 (D) mm |
| View Area: | 38.0 (H)mm x 16.0 (V) mm |
| Driver Method: | 1/16 Duty, 1/4 Bais |
| LCD Drive Voltage: | 4.0 V |
| Company Info. |
| Shenzhen Qihang Electronic Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Backlight STN FSTN Character Lcd Display Module
| Name | Backlight STN FSTN Character Lcd Display Module |
| Applicaion | All kinds of meter |
| Display Content | 8x2 DOTS |
| Operating voltage | 3.3V |
| Driving method | According to your request |
| Viewing angle | 6 O'clock |
| Display mode | Positive Mode |
| View Area | 38.0 (H)x 16.0 (V) mm |
| Outside Dimensions | 58.5(H) 32.5 (V)x 13.5 (D) mm |
| Dot Size (W*H) | 0.60 mm x 0.66 mm |
| Dot Pitch (W*H) | 0.42 mm x 0.5975 mm |
| Voltage driving | Dynamic or static |
| Connector | Pin |
| Display Mode | Positive |
| Polarizer Type | Transflective |
| Package | COB |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Backlight | White LED |
| LCD Module type | Character LCD Module |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| Cetification | ISO,SGS |
We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.
1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.
2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters

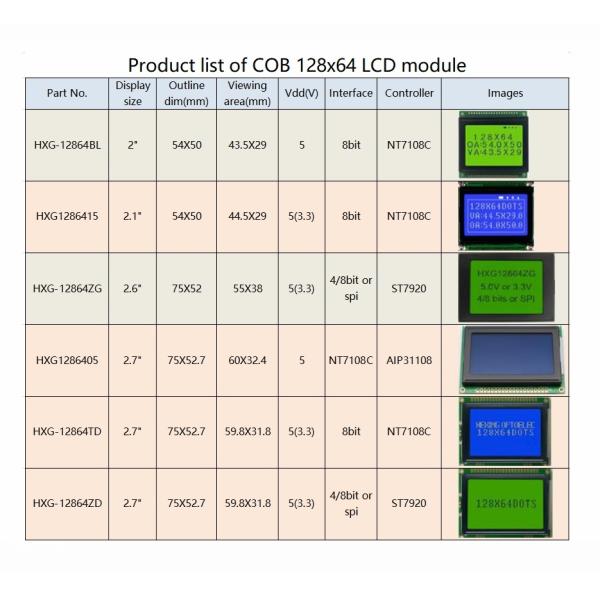

3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.
If you have any prodcut quality problem, you can send it back to us
with the original condition,we will repair or exchange new one for
you.
If you have any using problem of the products which buy from FUT,
please feedback to us first, and we will discuss the issue with
you. Via our technical support, we can dig out your using problem
via our technical support in most of cases.
Lost Products: If products get lost in delivery, or you still do
not get your item for a long time, please contact our customer
service timely. We will deal with this ASAP. Please do not deal
with it all by yourself, we want you communicate with us. Usually,
we will provide tracking number and tracking link timely. If
products get lost on the way and we get confirm from couriers, we
will arrange redelivery for your products. If you want ship it
through express, then you need to pay express shipping fee.
Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry
Q: How many years for warranty can you provide?
A: Normally 1 year. Can be longer but price should be modified.
Q: How long can I get reply?
A: Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday
online service to help you solve problems.Also reply by phone is
possible at night time and weekends.
Q: Is it possible to customize the LCD modules?
A: Yes you could let us know the concrete requirements then we will
design and confirm with you.
Q: Is it possible we appoint the delivery agent?
A: Yes. Except the couriers we mentioned, we could use others as
your requirement.
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials
and a small amount of finished goods. Small batch delivery needs
2-3 week, mass delivery takes 3-4 weeks.
Q: What shall we do if we find any item missing or defective after
receiving the goods?
A: Please contact us ASAP, we will check it and offer the best
solution according to the situation.
|
