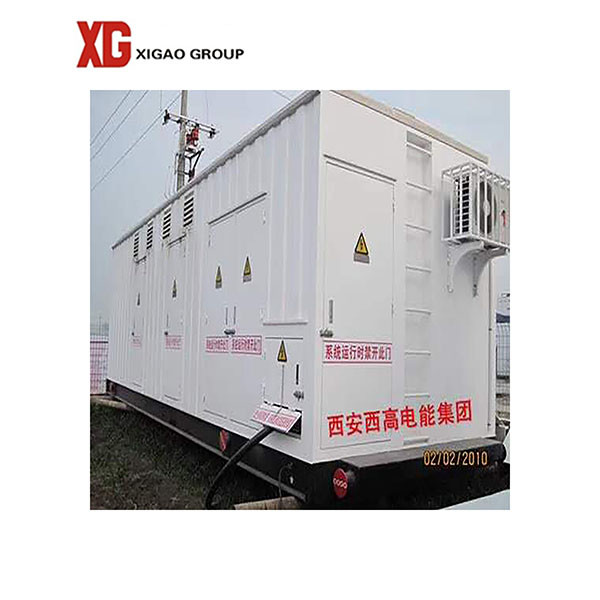

Outdoor 11KV 33KV Box Type Compact Transformer Substation

1. 11KV 33KV box type compact transformer substation distribution substation

Three-phase, transformer substation, for use on underground power distribution systems, are best suited for commercial applications in public access areas and where underground service is required. These transformers meet modern design requirements for flexibility and provide a visually pleasing installation. Construction allows installation in locations accessible to the general public without the need for protective fencing or vaults. These units are ideally suited for apartment buildings, schools, hospitals, shopping centers, commercial buildings, or industrial sites.

2. Environmental Information

-Sealed tank construction
-Special waste disposal considerations
-Insulation temperature limit: 120 °C
-Temperature rise: 65 °C (standard); 55 °C or 55/65 °C (optional)
Special Design Options
-Special sound requirements
-Special altitude requirements
-Retrofit designs
-Higher efficiency requirements

3. Technical data

Item	Unit	HV Department	Transformer	LV Department
Rated Voltage	kV	12/24/36	(12/24/36)/0.4	0.4
Rated Current	A	630	3/75-150/3750	Less than 4000
Frequency	Hz	50
Rated Capacity	KVA	50-2500
Pfr Withstand	kV	42/50/70/95		2.5
BIL	kV	72/125/170/185		/
Crust Protection Grade		IP23	Oil type 55, Dry type 65	IP23
Appearance Dimensions	mm	According to primacy wiring circuit schema

Item	Unit	HV Department	Transformer	LV Department
Rated Voltage	kV	40.5	40.5/12/0.69/0.4	12/6.3/0.69/0.4
Rated Current	A	Less than 1250	/	Less than 4000
Frequency	Hz	50
Rated Capacity	KVA	1250-20000
Pfr Withstand	kV	70/95		42/2.5(Auxiliary)
BIL	kV	170/185		75
Crust Protection Grade		IP23	Oil type 55, Dry type 65	IP23
Appearance Dimensions	mm	According to primacy wiring circuit schema

4. Applicable Standards

-IEEE C57.12.00—Standard General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers
-IEEE C57.12.34—Requirements for Pad-Mounted, Compartmental-Type, Self-Cooled, Three-Phase Distribution Transformers, 2,500 kVA and Smaller: High Voltage, 34,500 GrdY/ 19,920 V and Below; Low Voltage, 480 V and Below
-IEEE C57.12.28—Standard for Pad-Mounted Equipment—Enclosure Integrity
-IEEE C57.12.70—Standard for Terminal Markings and Connections for Distribution and Power Transformers
-IEEE C57.12.80—Standard Terminology for Power and Distribution Transformers
-IEEE C57.12.90—Standard Test Code for Liquid-Immersed Distribution, Short-Circuit Testing of Distribution and Power Transformers
-IEEE C57.13—Requirements for Instrument Transformers
-ANSI/IEEE 386—Separable Insulated Connector Systems for Power Distribution Systems Above 600 V
-ASTM D877—Test Method for Dielectric Breakdown Voltage of Insulating Liquids Using Disk Electrodes
-NEMA AB1—Molded Case Circuit Breakers
-NEMA TR1—Transformers, Regulators, and Reactors

5. Photo
