64CH Imaging Large Size Offset Printing CTP Plate Machine

Categories CTP Plate Machine
Brand Name: EcooGraphix
Model Number: EcooSetter VLF T-1600S
Certification: ISO9000, CE
Place of Origin: China
MOQ: 1 SET
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets/Year
Delivery Time: 25 Days
Packaging Details: Standard Export Packing
Price: Negotiable
Machine Type: CTP Machine
Media Type: Thermal CTP plate
Imaging System: 64CH
Output Speed: 16 Plates/Hour
Resolution: 2400dpi
Plate Size: Max. 1470mm x 1180mm; Min. 300mm x 400mm
Interface: USB 2.0 or USB3.0 (USB2.0 is recommended)
Machine Size (WxLxH)mm: 2355 x 1910 x 1217
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

64CH Imaging Large Size Offset Printing CTP Plate Machine


Large Size Offset Printing Plate Making CTP Machine


Application



EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.

By the EcooGraphix CTP machine, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.


Specification



ECOO VLF (Very Large Format) T-1600S CTP Machine


Model

T-1600S

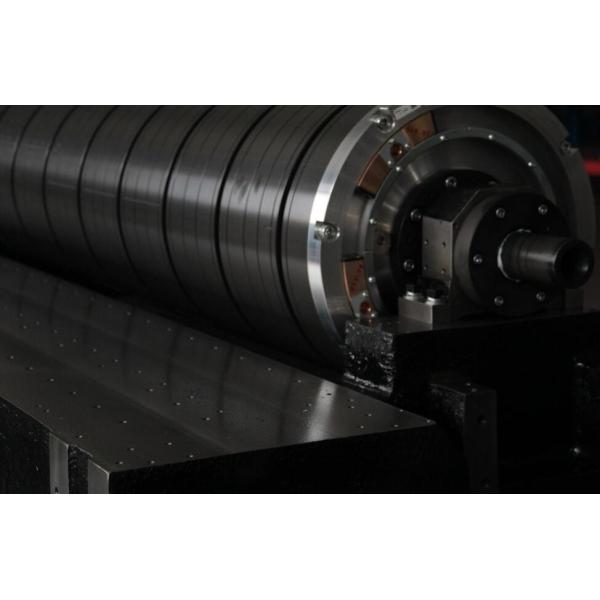

Exposing Method

External Drum


Imaging System

64-channel, Discrete 830nm laser diode


Output Speed

16plates/hour, 1470mm x 1180mm/ 2400dpi


Plate Sizes

Max. 1470mm x 1180mm; Min. 300mm x 400mm


Exposing Size

Max. 1470mm x 1164mm


Media Type

Thermal CTP plate


Plate Thickness

0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative)

Resolution

2400dpi


Repeatability

±5μm(Continuous exposing for 4 times or above on the same plate with

a temperature of 23ºC and humidity of 60%)

Interface

USB 2.0 or USB3.0(USB2.0 is recommended)


Plate Loading

Semi automatic


Net Weight

1400kg


Machine Size(WxLxH)mm

2355 x 1910 x 1217


Power Supply

Single phase: 220V-240V, Power Consumption(peak value): 5.5KW


Environment

Recommended: 21-25ºC; Max. 15-30ºC, Humidity: 40%-70%RH

ECOO VLF (Very Large Format) T-1600S CTP Machine
ModelT-1600S
Exposing MethodExternal Drum
Imaging System64-channel
Discrete 830nm laser diode

Output Speed

16plates/hour
1470mm x 1180mm/ 2400dpi
Plate SizesMax. 1470mm x 1180mm;
Min. 300mm x 400mm
Exposing SizeMax. 1470mm x 1164mm
Media TypeThermal CTP plate
Plate Thickness0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative)
Resolution2400dpi
Repeatability

±5μm(Continuous exposing for 4 times or above on the same plate with

a temperature of 23ºC and humidity of 60%)

InterfaceUSB 2.0 or USB3.0(USB2.0 is recommended)
Plate LoadingSemi automatic
Net Weight1400kg
Machine Size(WxLxH)mm2355 x 1910 x 1217
Power SupplySingle phase: 220V-240V, Power Consumption(peak value): 5.5KW
EnvironmentRecommended: 21-25ºC; Max. 15-30ºC, Humidity: 40%-70%RH


Details







Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.





Certificates





FAQ



1) What are your main products ?

A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing Equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter).

Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.


2) Where is your factory ?

A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!

3) What is your warranty for the CTPs ?

A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.

4) What is the Lead Time ?

A: Usually 20-30 days, and we will try our best to meet your demands.

5) Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.


6) What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.


These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
