Lower Start Speed 780 N.M Diameter 40mm One Way Clutch Assembly Sealed

CKL-B Non contact sprag one way freewheel coupling shaft bearing

Type CKL-B is a centrifugal sprag type freewheels, self contained, sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs grease or oil when used.

It has same character and dimension as CKL-A.

This combination is used as overrunning clutch and extensive used in mechanism of packing, metallurgy, mine and so on.

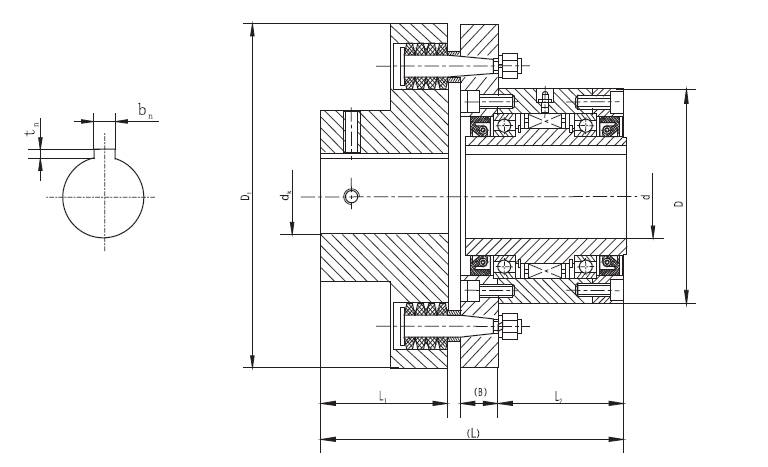

Mounting Example

Type	Nominal torque [N.m]	Overrunning Limiting Speed [r / min]		Dimension in Contour [mm]									Weight [kg]
		Overrunning Limiting Speed [r / min]		Dimension in Contour [mm]
		n_min	n_max	d [H7]	d_k [H7]	D	D₁	L	L₁	L₂	B	b_n x t_n
CKL-B2590	230	800	2500	25	20 - 40	90	130	127	50	60	17.5	4 x 1.8	6.4
CKL-B30100	400	780	2500	30	20 - 50	100	160	151	60	66	20	5 x 2.3	11
CKL-B35110	580	740	2500	35	25 - 65	110	190	177	75	75	19	6 x 2.8	17
CKL-B40125	780	720	2500	40	25 - 65	125	190	183	75	86	17	6 x 2.8	19
CKL-B45130	840	660	2500	45	25 - 65	130	190	184	75	86	17	6 x 2.8	19
CKL-B50150	1400	610	2000	50	30 - 75	150	225	213	90	92	25	14 x 3.8	31
CKL-B55160	1600	600	2000	55	35 - 90	160	270	233	100	104	29.5	16 x 4.3	47
CKL-B60170	2200	490	2000	60	35 - 90	170	270	244	94	114	30	18 x 4.4	49
CKL-B70190	3000	480	2000	70	45 - 110	190	340	318	140	134	38.5	20 x 4.9	90
CKL-B80210	6800	450	1500	80	55 - 125	210	380	340	160	142	35	20 x 4.9	107
CKL-B90230	6500	420	1500	90	65 - 140	230	440	369	155	159	50	25 x 6.4	170
CKL-B100270	12300	400	1500	100	75 - 160	270	500	427	200	182	40.5	28 x 6.4	230
