| Categories | Outdoor Digital Signage Display |
|---|---|
| Brand Name: | JCVISION |
| Model Number: | JC-OP100 |
| Certification: | CE, Rohs, FCC |
| Place of Origin: | SHENZHEN, CHINA |
| MOQ: | 1unit |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | wooden box |
| Panel Size: | 960x960x140mm |
| Pixel Pitch: | 10mm |
| Pixel Density: | 10000 Dots/sqm |
| Brightness: | 6500cd/sqm |
| Refresh Rate: | >1000HZ |
| Life-span: | 100,000 hours |
| Company Info. |
| Shenzhen Junction Interactive Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

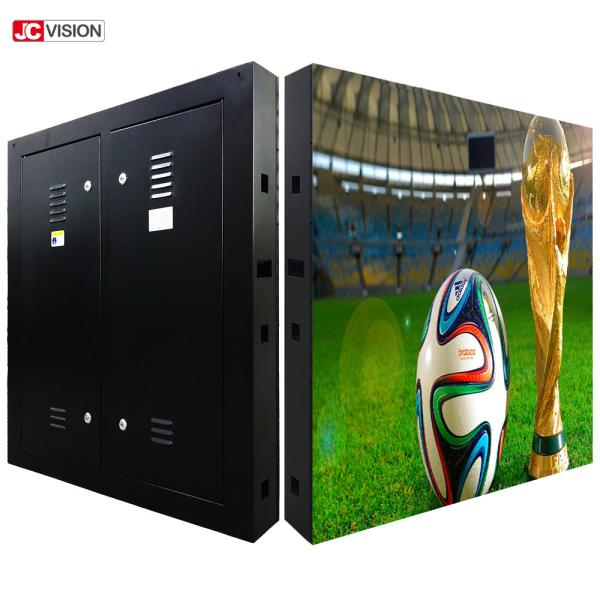

JCVISION Fixed P10 SMD IP65 LED Outdoor Digital Signage LED Display For Advertising
Outdoor Fixed P10 LED
1. Pixel Pitch: 10mm; Cabinet Size: 960×960mm
2. SMD 3535 LED; High brightness: 7500nits, and brightness
adjustable,High intensity.
3. Standard processing technology to ensure each row and each
column lamps at the same horizontal line, and ensure light
consistency and clear, stability pictures.
4. SD to ensure large viewing angle, up to 120° horizontally and
120° vertically. Image no distortion, no color cast in any angle
within this range.
5. Cabinet design lightweight, easy to maintain, IP65
high-performance waterproof and dust resistance.
All series outdoor Fixed adopt Meanwhile power supply, electro optic conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply electro optic conversion ratio is under 80%, and high heat dissipation, not stable, low cost.
| Pixel Pitch | 10mm | Type | SMD3535 |
| Chip parameters | Red λd:(620-625nm) IV:(800-960mcd) | Chip parameters | Green λd:(520-525nm) IV:(1350-1650mcd) |
| Chip parameters | Blue λd:(470-475nm) IV:(330-400mcd) | Module Resolution | 32×16=512(Dots) |
| Module Size | 320×160mm | Pixel Density | 10000 Dots/㎡ |
| Cabinet Resolution | 96×96=9216(Dots) | Cabinet Dimension(W*H*D) | 960×960×130mm |
| Cabinets Material | Steel | Cabinet Weight | 39kg |
| Brightness | ≥7500cd/㎡ | Viewing Angle | 120(Horizontal),120(Vertical) |
| Nearest Viewing Distance | 13m | Power Consumption (Max) | 1000 w/㎡ |
| Power Consumption (Average) | 300 w/㎡ | Refresh Rate | ≥1000Hz |
| Input Voltage | AC110-220V±10%,50/60Hz | Grey Scale Levels | 16bit |
| Brightness Adjustment | 256 color levels,can be adjusted manually and automatically optional | Life-span | 100,000 hours |
| Protection Level(front/back) | IP66/IP54 | Working Temperature | -30℃~50℃ |
| Humidity | 15%~85% | Drive Mode/Driver Position | Constant driving 1/2 Scan,Combined diver board |
| Input Signal | AVI/MPG/MPEG/TXT.etc | Control Mode | Synchronization/Asynchronization |
| Certificate Control System | CE,ROHS,FCC,ISO9001,TUV Sending Card, Receiving Card,Receiving HUB | PC Operating System | Microsoft Windows 7, XP and Vista |
| CSoftware | LED Studio ( MIKE_TV-linsn ) | Certificate | CE,ROHS,FCC,ISO9001,TUV |
| Communication Type | Net cable,3G,WIFI(Sold separately) | Control Card Input | DVI,USB,RJ45,HDMI(Sold separately) |
| Language | English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,Arabic | ||
|
