ISO9001 Ceramic FC ST 3.0mm 3m Patch Cord Sc Lc Duplex

Categories Fiber Optic Patch Cord
Brand Name: SUNET or OEM
Model Number: SC/UPC-SC/UPC
Certification: ISO9001
Place of Origin: Qingdao,China
MOQ: 1pcs
Price: USD0.4-1/Pcs
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability: 5000000pcs per week
Delivery Time: 5-8 working day
Packaging Details: One pcs in one plastic bag
Fiber type: G652D/G567A SM MM
Fiber count: Simplex or Duplex
Ferrule End-face: PC, UPC, APC
Connector type: SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Material: PVC/LSZH
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
Length: 1m 2m 3m or Customized
Product name: Fiber Optic Patch Cord
Insertion loss: ≤0.3dB
Return loss: APC≥55db UPC≥50db
Ferrule Material: Ceramic
Application: FTTH FTTB FTTX Network,FTTH/Test equipments/TV/LAN/Telecommunication equipments
Quality control: 100% test before shipping
Warranty period: One Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ISO9001 Ceramic FC ST 3.0mm 3m Patch Cord Sc Lc Duplex

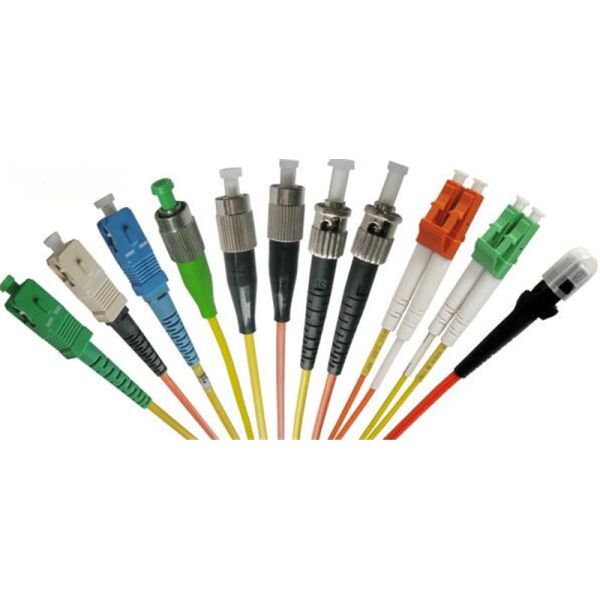

Fiber optic patch cord


Description


Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


Feature


1. Price-Competitive

2. Low Insertion Loss & PDL

3. Factory-terminated and Tested

4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber

5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

6. Polishing Options:PC/UPC/APC

7. Feature Connector with Ceramic Ferrules


Application


1. Access Network

2. Telecom/CATV

3. Systems FTTX


Specification


Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657)

MM(OM1/OM2/OM3/OM4/OM5)

Jacket Materials

LSZH/OFNR/PVC

Connector Type

FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Loss (dB)

≤0.25dB

≤0.3dB

TIA/EIA-455-107

(PC/UPC/APC)

(PC/UPC)

Return Loss (dB)

≥50dB(PC/UPC)

≥40dB(PC/UPC)

TIA/EIA-455-107

≥60dB(APC)

Exchange-ability

≤0.2dB

Cable Assemblies

Pigtail/Simplex/Duplex/Fan-out Patch cord

Operating Temperature (℃)

-10 +70

Storage Temperature (℃)

-40 +85

Package

1 pieces/bag

All values specified are with connectors
