| Categories | Electromagnetic Lock |
|---|---|
| Brand Name: | KERONG |
| Model Number: | KR-S99N |
| Certification: | CE/RoSH/FCC |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 50,000 pieces per month |
| Delivery Time: | 5-15 days working time |
| Packaging Details: | The material of Package: K=K Reinforcement Carton;Carton:50 PCS/CTN or customize according to customers' requirements |

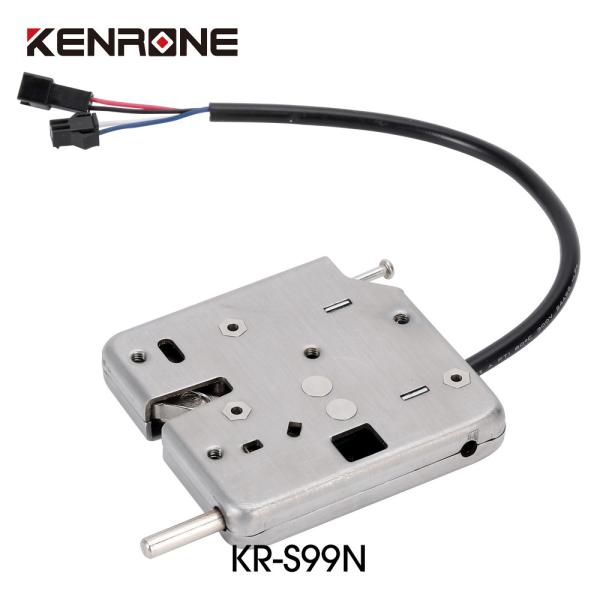

| Product Name: | DC 24v Solenoid Locker Lock for Parcel Delivery Locker with RS485 |
| Model: | KR-S99N |
| Product Material: | 430 Stainless Steel |
| Voltage: | DC 12V~24V |
| Current: | 2.4A/1.2A |
| Product Size: | 69*72.5*13.5 mm |
| Product Weight: | 189 g |
| Drive Way: | Solenoid |
| Tensile Strength: | 240 kg |
| Maximum Power: | 28 W |
| Operating Temperature: | -20~+60℃ |
| Operating Humidity: | 5%~85%RH |
| Service Life: | 500,000 times |
| Samples: | ≤ 3 pcs |

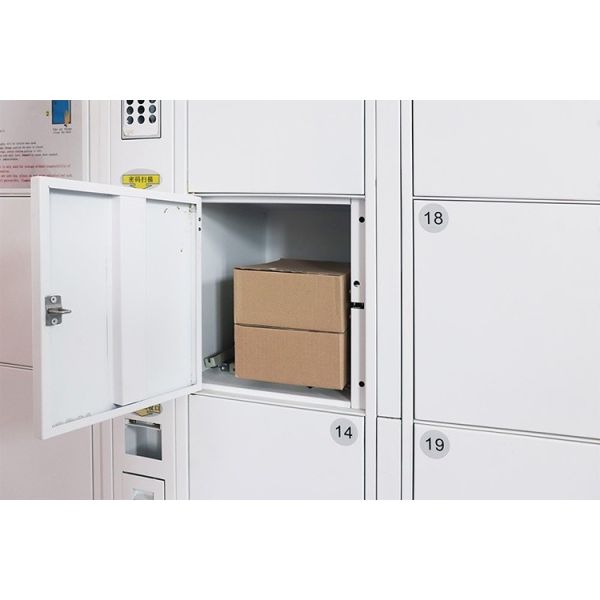

Our products KR-S99N electronic solenoid locker lock DC 24v are used in vending kiosk locker, centralized control ark express cabinets, gym cabinets, storage cabinets, etc.
Product parameters:
| Model | KR-S99N |
| Size | 69*72.5*13.5 mm |
| Name | 24V solenoid lock for cabinet |
| Weight with lock hook | 201g |
| The material of lock body | 430 Stainless Steel |
| The material of lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V/DC24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Usage | parcel storage locker; gym cabinet; logistic locker; vending machine |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Lock hook detection function, With push lever to help push the door open
2. Solenoid drove, can work in 12V & 24V
3. The lock housing is made of 430 stainless steel, anti-force performance: 240kgs

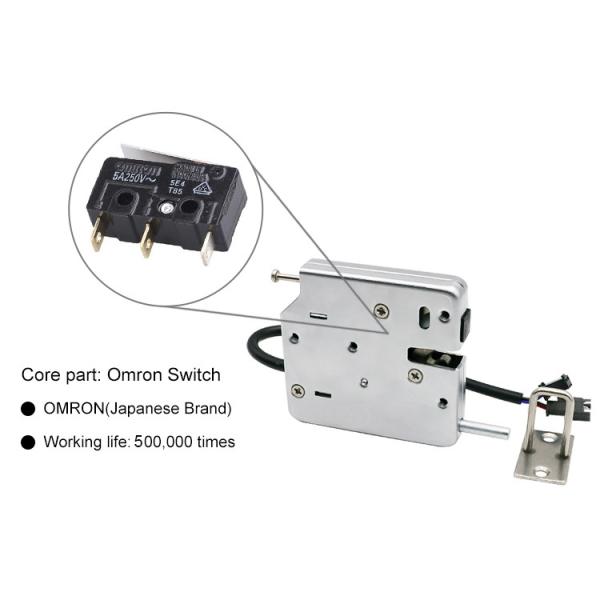

4. Omron switch from Japan, with 500,000 times operating life
5. Mechanical emergency lever, can be manually unlocked in case of power failure
6. Imported piano wire torsion spring, AWG24 wires with PVC tube protects the wirings
7. Connector and wires can be customized according to actual conditions
Product Details:
Hook Model
Model | Base | Thickness | Height | Weight |
Hook A | Flat base | 3.0mm | 30mm | 11.0g |
Hook B | Flat base | 3.0mm | 25mm | 10.5g |
Hook C | Arch base | 3.0mm | 26.5mm | 10.8g |
Hook D | Arch base | 3.5mm | 26.5mm | 11.8g |
Hook E | Arch base | 3.0mm | 31.5mm | 11.4g |
Hook F | Arch base | 3.0mm | 26.5mm | 10.5g |
Hook G | Arch base | 3.5mm | 30mm | 11.0g |
Feel free to contact us for more information, we sincerely welcome your inquiry.
