| Categories | Automatic Cement Block Machine |
|---|---|
| Brand Name: | SCEC |
| Model Number: | QT6-15B |
| Certification: | ISO CCC |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 sets per month |
| Delivery Time: | within 25 work days after prepayment received. |
| Packaging Details: | by container, large parts nude, small parts packed by wooden box |
| Model: | QT6-15B |
| Concrete block produced: | Air brick, colorful road paver brick, normal standard concrete brick |
| Productivity: | 1200pcs/hr Air brick, 7200pcs/hr normal standard concrete bricks |
| Batching machine (three hopper): | PL1200 |
| Concre mixer: | JS500 |
| Belt conveyer machine: | L=8000mm |
| PLC control system: | D-6-M |
| Electric voltage: | 380v, 415v/50hz(be optional) |
| cement silo: | 50T detachable bolted type cement silo |
| Cement pneumatic conveying systems: | Conveying System：Productivity: 35~40T/h，Horizontal distance ≤40m，Height ≤20m，Bend ≤5pieces |
Automatic Cement Block Machine QT6-15 Cement Block Making line, Concrete Bricks Productivity 1200pcs/hr
Specification
| Part 1, Cement storage system | |||||||||||||||||
01 | 50T detachable bolted type cement silo 1. Capacity:50Tons 2. Diameter:3140mm 3. Total height:12275mm 4. Outrigger Specifications:Seamless Pipe 219*5 5. Discharge height:3200mm 6. The body thickness: 3mm 7. Under the cone thickness: 4mm Material: Q235 Carbon steel 8. Total weight: 6500kg Shipping by 40feet Container. | 1 total set | |||||||||||||||
| Part 2, Cement pneumatic conveying systems | |||||||||||||||||
| Conveying System:Productivity: 35~40T/h,Horizontal distance ≤40m,Height ≤20m,Bend ≤5pieces | |||||||||||||||||
| 1 | Roots Blower | ZRSR200AHB,45Kw | pair | 1 | Including the host, motors, chassis, import and export muffler, gear, shields, flexible connectors, check valves, pressure relief valve, pressure gauge, anchor bolts and the like. | ||||||||||||
| 2 | Wear feeder | ARD350B,2.2Kw 37L/r,20r/min | pair | 1 | Host containing wear, wear bushings, wear-resistant rotor, gear motor, base, sprockets, chains, chain guard and so on. Material: CS. Export standard machining | ||||||||||||
| Pumping chamber | VC-14-CS | piece | 1 | Material:CS | |||||||||||||
| Acceleration chamber | DN150 | piece | 1 | Material:CS | |||||||||||||
| Seal | pair | 1 | Including valves, flow control valve. | ||||||||||||||
| 3 | Manual flapper valve | DN400 | piece | 1 | |||||||||||||
| 4 | Metal expansion joints | DN400 | piece | 1 | |||||||||||||
| 5 | Transport large elbow | R=8D,DN150, | piece | 3 | Material:CS | ||||||||||||
| 6 | Silo roof Level meter | RF admittance | piece | 1 | Material:SS304,High level meter. | ||||||||||||
| 7 | Control cabinet | pair | 1 | Including manual, automatic. | |||||||||||||
| 8 | Pipeline | DN150(168*6) | m | 30 | User-supplied | ||||||||||||
| 9 | pulse dust collector | Filter area ≥24㎡ | piece | 1 | Incuding Induced draft fan 1.5Kw, Material: CS | ||||||||||||
| 10 | Pressure relief valve | piece | 1 | ||||||||||||||
| Part 3, BLOCK MACHINE LINE | |||||||||||||||||
| NO. | Device Name | Specification | Unit | Qty | |||||||||||||

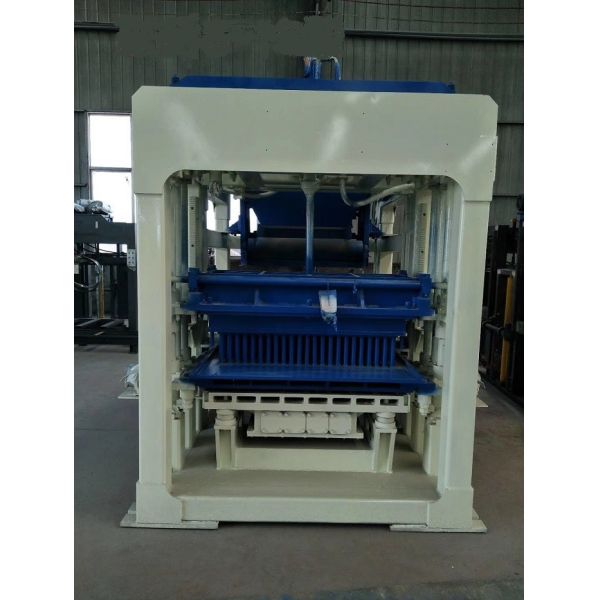

| 1. | Block making machine | Q6-15 | set | 1 | Free supplied with main machine | ||||||||||||
| 2. | Hydraulic station | D-6-22 | set | 1 | |||||||||||||
| 3. | PLC control system | D-6-M | set | 1 | |||||||||||||
| 4. | Pallet feeder | set | 1 | ||||||||||||||
| 5. | Brick conveyer | set | 1 | ||||||||||||||
| 6. | Block sweeper | rotating brush model | set | 1 | |||||||||||||
| 7. | One block machine | standard model | set | 1 | |||||||||||||
| 8. | Manual hydraulic trolley | C=2500kg | set | 2 | |||||||||||||
| 9. | Spare parts and tools | set | 1 | ||||||||||||||
| 10. | Automatic stacker | D-6-S | set | 1 | |||||||||||||
| 11. | pallet | bamboo | set | 600pcs | |||||||||||||
| Batching section | |||||||||||||||||
| 12. | Screw conveyer machine | Φ219x6000mm | set | 1 | |||||||||||||
| 13. | cement scale | set | 1 | ||||||||||||||
| 14. | Batching machine (three hopper) | PL1200 | set | 1 | |||||||||||||
| 15. | Concre mixer | JS500 | set | 1 | |||||||||||||
| 16. | Belt conveyer machine | L=8000mm | set | 1 | |||||||||||||
| 17. | Batching and mixing control box | set | 1 | ||||||||||||||
Secondly, main parst and working procedure
1. 50t silo&pneumatic conveying system-cement storage
2. The Main brick making line:
Brick making procedure:
1. Aggregate storage cabin, usually three, for Cement, sand, other(like fly ash, small pebble...)
2. Mixer, this model use JS500
3. Conveying belt
4. Main brick making machine
5. Stacker
6. PLC control box
Cement silo→three agrregate cabins→conveying belt→cement scale→mixer→pallet feeder→brick machine→brick conveyor→brick sweeper→stacker→hydraulic trolly
1→2→3→4→5
Only need one worker control 6, fully automatic.
3. Advantage:
1. Material and welding: all material and spare parts selected according international CE standard, Carbon dioxide protection welding will assure whole line stable running.
2. Control PLC: we select original Mitsubishi PLC combine with independently develop machine control program, assure stable and high-efficiency working status.
3. Swiches and motor: Swiches will used Japan Omron and France Schneider brand, motor will use Siemens or ABB brand.
4. Hydraulic system: Hydraulic spare parts be ordered according to our block machine characteristic from Taiwan.
5. Material feeder: Rotary mixer type material feeding cart, finished products get higher density and strength.
6. Mould: newest heat treatment device assure longer mould life span.
7. Spare part: follow the machine shipment, we supply stable wearing parts, the after-sale services will be faster.
4. More photos for your reference:
|
