| Categories | EPON OLT ONU |
|---|---|
| Brand Name: | OPTFOCUS |
| Model Number: | OFS-OLT-ESPX20+++ |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Price: | 28.5 USD per PCS |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pcs per month |
| Delivery Time: | 5-7 days |
| Packaging Details: | Box/Carton |
| Connector: | SC/UPC |
| wavelength: | 1310/1490nm |
| Operation Tem: | 0-70℃ |
| Transmission: | 1.25G |

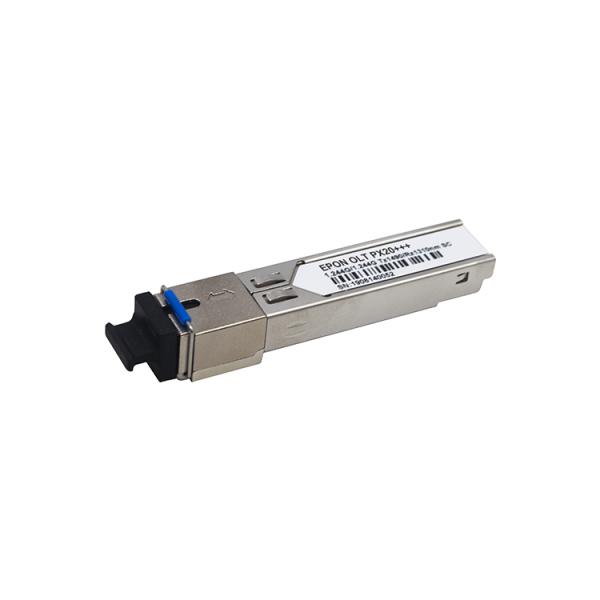

EPON OLT PON Modules PX20+ PX20+++ for FTTH connection
Features:
Application
Recommended Operating Conditions
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | TSTG | -40 | 85 | °C |
| Operating Case Temperature | TC | 0 | 70 | °C |
| Power Supply Voltage | VCC | 3.1 | 3.5 | V |
| Total Power Supply Current | ICC | - | 350 | mA |
Transmitter Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Units | Notes |
| Optical Transmitter Power | P0 | 6 | 7.5 | 11 | dBm | 1 |
| Optical Transmitter Power off | POFF | - | - | -39 | dBm | |
| Output Center Wavelength | λ | 1480 | - | 1500 | nm | |
| Output Spectrum Width | Δλ | - | - | 1.0 | nm | |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | |
| Extinction Ratio | ER | 9 | - | - | dB | |
| Optical Rise Time | - | - | - | 260 | ps | |
| Optical Fall Time | - | - | - | 260 | ps | |
| Optical Eye Diagram | Compliant with IEEE Std 802.3ahTM-2004 | |||||
| Tolerence to Tx Back Reflection | - | -15 | - | - | dB | |
| Data Rate | - | - | 1.25 | - | Gb/s | |
| Single Ended Data Input Voltage Swing | VPP | 200 | - | 1200 | mV | |
| Differential Input Impedance | ZIN | 80 | 100 | 120 | ohm | |
| Tx_fault Output Voltage- High | VOH | 2.4 | - | - | V | |
| Tx_fault Output Voltage- Low | VOL | - | - | 0.4 | V | |
| Tx_Dis Input Voltage- High | VIH | 2.0 | - | - | V | |
| Tx_Dis Input Voltage- Low | VIL | - | - | 0.8 | V | |
Digital Diagnostic Monitoring Accuracy
| Parameter | Accuracy | Units | Notes |
| Transceiver Temperature | ±3 | °C | Temperature sensor |
| Power Supply Voltage | ±3 | % | Vcc=3.13~3.47V |
| TX Bias Current | ±10 | mA | - |
| TX Optical Power | ±3 | dB | Average Power |
| Rx Receiver Power | ±3 | dB | - |
