Electric Power Transformer Substation Steel Structures ASTM A572 Grade 50

Angle Steel Substation Structure Electric Power Tranformer Substation Steel Structure

1. Production description

A outdoor electric substation structure include lattice steel tower ,tubular steel structures .

The main structures including

Dead end structures :Common dead end structures are H frame and A frame Structures

Static poles

Bus supports

Qingdao Liangta Steel Structure Co.,Ld. provide design and fabrication of power transmission substation structures

for our overseas clients.

power transmission substation structures was made of angle steel, square pipe, channel steel or others.

Steel grades used for substation steel structures:

Chinese Standard Q420,which equal to ASTM A572 Grade 65
Chinese standard Q345B, which equal to ASTM A572 Grade 50
Chinese Q235B, which equal to ASTM A36

Bolts: Chinese grade 6.8 and 8.8, which equal to ASTM A394

Hot dip galvanization: GB/T 13912-2002, which similar to ASTM A 123

The welding :AWS D1.1 or CWB standard

Type test and preshipment test is accepted .

If needed ,we even can supply an engineer for help installing the substation structure.

Terms and condition:

Price Term: EXW, FOB, CFR or CIF, FCA and so on

Shipping seaport: Qingdao port

Payment Term: Usually 30% by T/T as deposit balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

Delivery Time: Usually 30 days after PO/drawing/prepayment confirmed.

Package: Normally wrapped by plastic bags at the top, middle and bottom, or according to client’s requirement.

Please provide drawings if you have so that we can calculate the accurate price for you.

We also provide design according to your requests, if you don't have drawings.

2. Production capacity

​

3. Technical support

​

4. Quality Control

Material incoming control:chemical and physical test

Zinc coating thinknes inspection

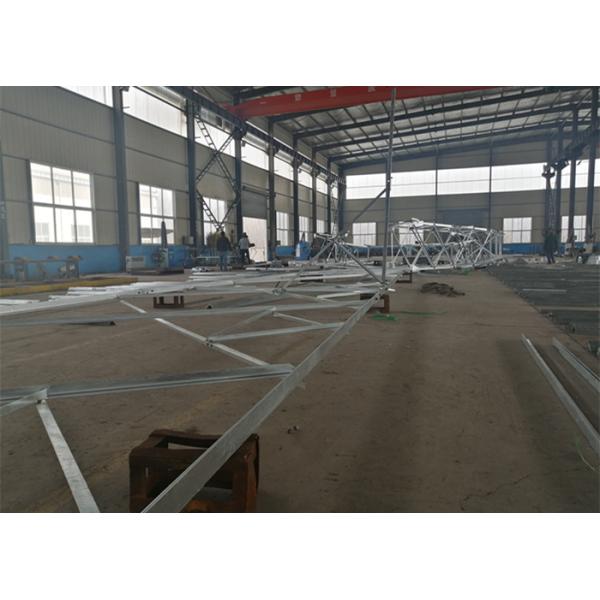

We usually has two ways of trial assembly: trial assembly before galvanzation and after galvanization

6. Hot dip galvanization and painting

7. Package and delivery

8. Company introduction

Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2005,is a leading professional manufacturer in the field of transmission line towers (the voltage up to 500kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.

The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 60,000 tons.

Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.

• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007

We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.

Welcome to contact us ,we make sure your every question will be answered in time .

Cerificate :

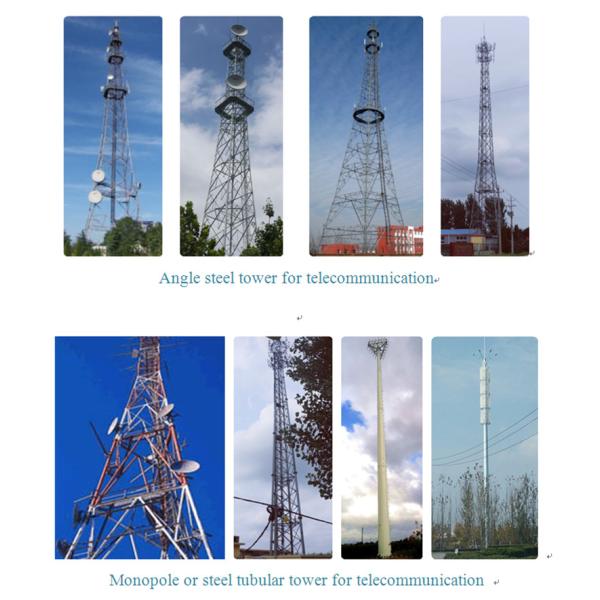

9. Product catalogue:

Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2009,is a leading professional manufacturer in the field of transmission line towers (the voltage up to 500kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers ‘requirement.

The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 60,000 tons.

Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.

• Qualification Certificates:
• - Environmental Management System Certificate: ISO14001:2015
• - Quality Management Systems Certificate: ISO9001:2015
• - Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007

Welcome to contact us ,we make sure your every question will be answered in time .
