| Categories | Cisco Gigabit Switch |
|---|---|
| Brand Name: | huawei |
| Model Number: | S5730-68C-SI-AC |
| Place of Origin: | china |
| MOQ: | 1 Unit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per week |
| Delivery Time: | 3~5 working days |
| Packaging Details: | Original packing |
| Brand: | huawei |

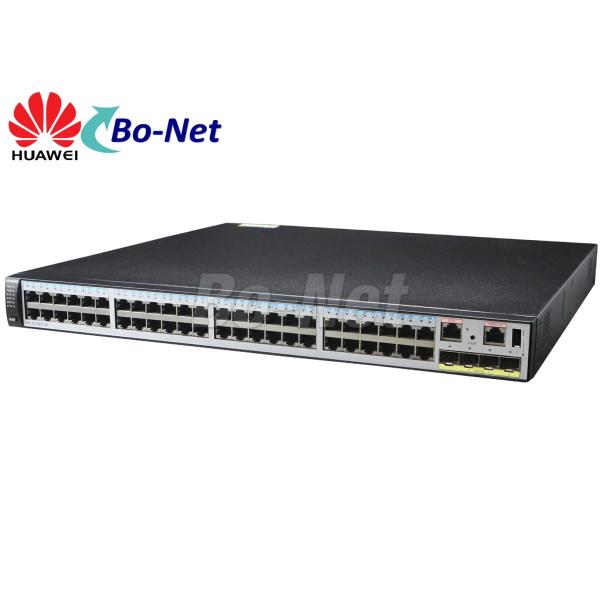

| Product name: | S5730-68C-SI-AC |
| Device type: | Huawei 48 ports Gigabit Switch |
| Product type: | Huawei S5730 Switch |
| Ports: | 48 Ethernet 10/100/1,000 ports |
| uplink ports: | 4 x 10 Gigabit SFP+ |
| power supply: | 150W |
| Switching Capacity: | 680 Gbit/s |
The S5730-SI series switches (S5730-SI for short) are next-generation standard gigabit Layer 3 Ethernet switches. They can be used as an access or aggregation switch on a campus network or as an access switch in a data center.
The S5730-SI series switches provide flexible full gigabit access and cost-effective fixed GE/10 GE uplink ports. Meanwhile, the S5730-SI can provide 4 x 40 GE uplink ports with an interface card.
| Product model | S5730-68C-SI-AC |
| Ports | 48 Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+ |
| Slots | One interface slot |
| Power Supply | Dual pluggable AC or DC power supplies, one 150W AC power supply equipped by default |
| Forwarding performance | 240 Mpps |
| Switching capacity | 680 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm |
| Product model | S5730-48C-SI-AC | S5730-48C-PWR-SI-AC | S5730-68C-SI-AC | S5730-68C-PWR-SI-AC S5730-68C-PWR-SI |
| Switching Capacity | 680 Gbit/s | 680 Gbit/s | 680 Gbit/s | 680 Gbit/s |
| Forwarding Performance | 240 Mpps | 240 Mpps | 240 Mpps | 240 Mpps |
| Fixed Ports | 24 x 10/100/1,000 Base-T, 8 x 10 Gigabit SFP+ | 24 x 10/100/1,000 Base-T, 8 x 10 Gigabit SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gigabit SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gigabit SFP+ |
| Extended Slots | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card | |||
| MAC Address Table | 32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses | |||
| VLAN Features | 4,094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping | |||
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 | |||
| Interoperability | VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+,
and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) | |||
|
