| Categories | Character LCD Module |
|---|---|
| Brand Name: | ROYAL DISPLAY |
| Model Number: | RYP1602A-8 |
| Certification: | SGS ROHS |
| Place of Origin: | CHINA |
| MOQ: | 500pcs |
| Supply Ability: | 500k/Month |
| Delivery Time: | 25~28 Working Days |
| Packaging Details: | 130pcs/CTN 7.0Kg L45*W36*H32CM |
| Product Name: | Yellow Green STN 1602 Character LCD with Y-G Backlight |
| Model No.: | RYP1602A-8 |
| LCD Type: | YG Display |
| LED Backlight: | Yellow Green |
| Driver IC: | AIP31066 |
| Price: | Negotiable |
| Company Info. |
| Royal Display Co.,Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
1602 Character LCD Display Module Blue Backlight with I2C
| Item | Description |
| Product Name | 16x2 COB LCD Module |
| Model No. | RYP1602A-8 |
| Dot Format | 16 x 2 |

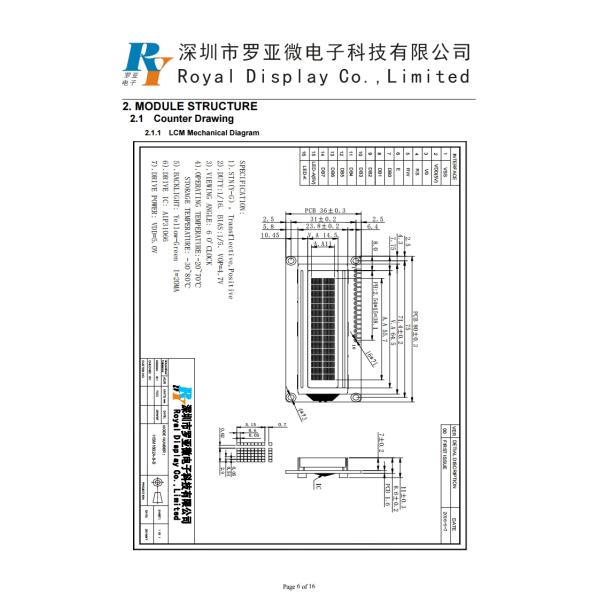

| Outline Dimension(mm) | 80.0 x 36.0MAX |
| Assem. Size(mm) | 75.0 x 31.0 |
| Viewing Area(mm) | 64.6 x 16.0 |
| Character Size( mm) | 2.95 x 5.55 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN-YG, Positive, Transflective |
| Backlight | Yellow Green |
| Driver IC | AIP31066 |
| Power supply | 3.3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications
Car Radios, Industrial Instruments,meter for measuring electricity ,Clusters, Air conditioner, Price Tag, Printer, Fax, etc
Features
Wide Operation & Storage temperature range
(Top:-30~+85℃； Tst:-40~+90℃)
Small color change vs. Temperature
Suitable for all kinds of backlight (white/red/blue etc.)
Transmissive negative Mode
Duty Ratio: 1: 1 to 1: 33 (MP)
Super black background
Super high contrast ratio(up to 1000:1)
|
