Categories | LED Stage Backdrop Screen |
---|---|
Brand Name: | XGC |
Model Number: | P3.91 |
Certification: | CE ,FCC, ROSH CCC |
Place of Origin: | Shenzhen,China |
MOQ: | 1PCS/㎡ |
Price: | USD1570-USD1800/㎡ |
Payment Terms: | T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram |
Supply Ability: | 5000㎡ per month. |
Delivery Time: | 7-15 days |
Packaging Details: | Plywood case、flight case |
Product name: | Dance Floor Led Screen P3.91 |
Usage: | Outdoor |
Application: | stage,bar,night club,etc |
Display function: | Video,picture |
Warranty: | 2 Years |
Cabinet size: | 500*100mm |
Bearing capacity: | ≥1.2 ton/pcs |
Weight: | 20kg/pcs |

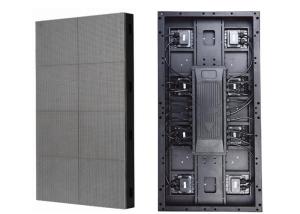

4500CD LED Stage Backdrop Screen , Dance Floor Led Screen For Night Club P3.91
Advantage:
Technical Parameter for P3.91 Dance floor LED DISPLAY | |||||||||||||
Module Specifications | |||||||||||||
1 | Pixel Pitch | 3.91mm | |||||||||||
2 | Led Type | SMD1921 | |||||||||||
3 | Pixel configuration | 1R1G1B | |||||||||||
4 | Module Size | 250x250mm | |||||||||||
5 | Module Resolution | 64x64pixels | |||||||||||
6 | LED Chip | Epistar | |||||||||||
7 | LED brand | Hongsheng/Forest/ Kinglight/Nationstar/ | |||||||||||
Cabinet Specification | |||||||||||||
1 | Cabinet Size | 500x1000mm | |||||||||||
2 | Cabinet Resolution | 128x256pixels | |||||||||||
3 | Module Qty. | 2x4pcs | |||||||||||
4 | Power Supply | 5V40A 200W/ 5V60A 300W | |||||||||||
6 | Cabinet Materials | iron cabinet | |||||||||||
7 | Power flight socket | 1set | |||||||||||
Screen Parameters | |||||||||||||
1 | Pixel density | 65536dots/㎡ | |||||||||||
2 | Screen Resolution | according to screen size | |||||||||||
3 | Cabinet Qty. | according to screen size | |||||||||||
4 | Brightness | ≥4500 CD/sqm | |||||||||||
5 | Refresh rate | ≥1920Hz/s | |||||||||||
6 | Scanning Mode | 1/16 scan | |||||||||||
7 | Viewing Angle | H:140°;V:140° | |||||||||||
8 | Viewing Distance | ≥3.91m | |||||||||||
9 | Gray Level | 16 Bit | |||||||||||
10 | Power Input | AC110~240V | |||||||||||
11 | Power Comsuption | Max: 400W/㎡ Average:100W/㎡ | |||||||||||
12 | MTBF--hours | >10,000 hours | |||||||||||
13 | Life--hours | ≥100,000 hours | |||||||||||
14 | IP Grade | IP65/IP54 | |||||||||||
15 | Operating Temperature | -35℃~ 65℃ | |||||||||||
16 | Storage Humidity | 10℃~90℃RH | |||||||||||
17 | Control Syetem | Colorlight/Nova/Linsn | |||||||||||
18 | Operating System | Windows98/me/2000 /NT/XP | |||||||||||
19 | Power Supply | 5V40A 200W/5V60A 300W | |||||||||||
20 | Maintance Access | Back service/Front service | |||||||||||
21 | Control mode | computer /USB/WIFI/4G |
HS code: 8528591090
Regular plywood package:
Common project case:
![]() |
