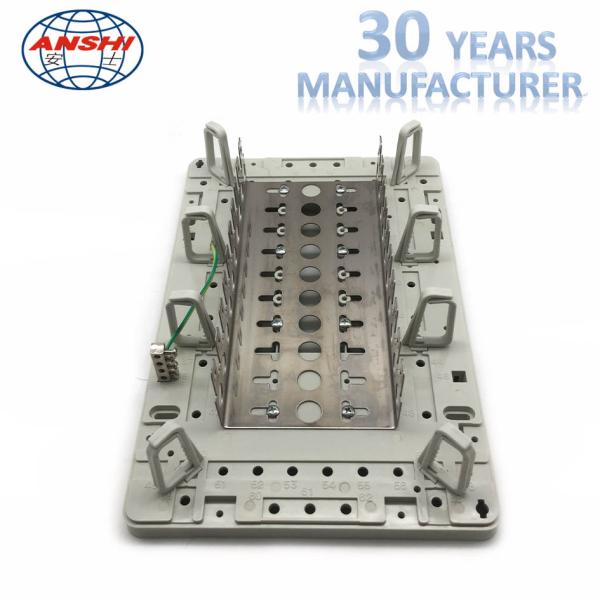

Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module

Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module

Features:

1) Can be mounted with LSA-PLUS 10-pair distribution or connection module

2) Waterproof box, suitable for outdoor wire distribution

3) Material of house: ABS

4) Including stainless steel mounting frame, but modules to be ordered separately

5) Including 1 back mount frame(10ways)

6) Compatible with Krone modules

Specifications:

1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;

2. The modules are compatible with KRONE LSA-PLUS modules.

3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires

4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N

5. Internal diameter of connection wire: 0.4-0.6 mm

6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard

7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections

8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition

9. Intermediate resistance: no more than 3m ohm under standard examination condition

10. Dielectric strength: according to industry standard

11. Specification:10-30 pairs,Waterless,every specification has connection or disconnection types

12. Life: durability 200 cycles

Over 30 Years of Experience
Cixi Anshi Communication Equipment has been specializing in jacks and connectors since 1986. We offer you more than 200 specifications in 10 categories, including fiber-optic distribution trays and splice closures, drop wire connectors, Cat5E and Cat6E patch cables, internet connectors, and distribution boxes. About 60% of our products are exported to Southeast Asia, Europe, the Middle East, Africa and the US.

One New Product Every Month
Our six R&D staff members use advanced testing equipment from the US. They use computer software such as AutoCAD, Pro/E, 3D MAX and Photoshop. They also develop one new product every month to meet your requirements.

OEM/ODM Orders Accepted
Now, we have more than 100 staff members and 20 of them are technicians at our 4,800 sqm factory. We have two production lines dedicated to processing your OEM/ODM orders, thus, we produce $200,000 worth of components every month.

Three Sections to Control Quality
Following ISO 9001:2000 guidelines, our quality control department includes QC, QE and QA sections. QA staff members check the quality of all raw and processed materials, while QE personnel are responsible for the related documents. QC staff members handle your requests and quality statistics, and make the corresponding improvements. We use materials from South Korea, the US and Taiwan to ensure quality. You can have confidence in ordering our CE-approved products.
