| Categories | IR Touch Display |
|---|---|
| Brand Name: | HUSHIDA |
| Model Number: | WSCM-32 |
| Certification: | ISO9001 24001, 3C, CE, Rohs,FCC |
| Place of Origin: | Guangzhou,China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000 units per month |
| Delivery Time: | 15 working days |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Product Name: | Touch Screen Monitor |
| Size Of Panel: | 32 inch |
| Brightness: | 350cd/㎡ |
| Standard: | CE/ROHS/FCC/ISO9001 |
| Color: | White/Black |
| Resolution: | 1920*1080 |
| Feature: | TFT, touch screen kiosk |
| Type: | Horizontal |
| Application: | Indoor |
Quick Detail:
Touch Type: 10 points infrared touch
Resolution: 1920x1080p FHD, 60Hz
Screen Size: 32inch
Viewing Angle: 178/178 degree
Color: Black(OEM/ODM acceptable)
Contrast Ratio: 1200:1
Application: Indoor
Description:
The Interactive Information Kiosk is a multimedia professional audio-visual system that can publish
commercial, financial and entertainment information through large screen terminal display equipment.
It combines the advantages of durable material, high brightness, high contrast and high definition.
Because of its fashionable appearance and powerful function, it has been favored by consumers.
It should be widely used in shopping malls, office building,supermarkets,
hotel lobbies, restaurants, cinemas and other public places where people converge.
Multi-touch
10 points Infrared touch screen function is easy for image zoom in and out, multi-touch image, browse application.
Photo can be zoomed by finger, two people can operate at the same time
Android 7.1 OS
Like a big Android tablet,support 1080P video and picture play, build-in HDMI 1.4 output support 3D output,
and good for website and flash broadcast
Easy to install Query System
With the touchscreen function, easy for the customer to operation and make the self-service come true.
Suitable for shopping malls, hotels, schools, airports, public information, multimedia teaching, subway station inquiry
Wifi Module & Wireless Projection
Enjoy the convenient of online searching, and it could be easily
connected to other big screens, make connection easier and let wireless screencasting come true
Applications:
The digital information Kiosk is widely used in cinemas, shopping malls, restaurants, exhibition halls, etc.
It increased the communication with customer and business, improved user experience. Let smart advertising bring new experience to your business
Specifications:
| Model | |
| Product brand | HUSHIDA |
| Product name | Horizontal touch one machine 18C |
| Product number | WSCM-32 |
| LCD panel | |
| Diagonal size | 32 inches |
| Panel brand | SAMSUNG, LG, AU (A screen) |
| Types of | TFT-LCD S-PVA |
| Resolution | 1920 × 1080 (FHD) @60hz |
| Brightness (typical) | 350cd/m2 |
| Contrast (typical) | 1200:1 |
| Viewing angle (horizontal/vertical) | 178°/178° |
| Response time (gray scale) | 8ms |
| Visible area | 698.4(W)×392.85(H) mm |
| Pigment | 16.7 million colors 24Bit |
| Color gamut (NTSC) | 72% |
| Backlight | WLED |
| Zoom | 16:9 |
| Response time | <8ms |
| Life | >60000H |
| Infrared touch characteristics | |
| Touch specification | Infrared touch frame |
| Glass | 4mm tempered glass |
| Glass transmittance | >88% (higher transmittance depends on the surface treatment technology of the glass such as AR/AG) |
| Object induction number (IR) | 10 touch |
| Infrared sensing line number (W × D) | 32767 × 32767 |
| Point accuracy | More than 90% of the touch area is ±2mm |
| Interface definition | USB 2.0 (Full speed) |
| Touch force | Zero pressure touch |
| Light resistance | Lightfast |
| Induction life | 6 million times |
| Response time | <8ms |
| Power supply | Full duplex USB powered DC +5V up to 500mA |
| Power supply characteristics | |
| Switching power supply | AC100-240V~(+/-10%), 50/60Hz |
| Power consumption (typical) | 70W |
| Power standby power consumption | 1W |
| Power interface | European standard 220V two-phase three-wire system |
| Mechanical specification | |
| net weight | 23kg |
| Gross weight | 25kg |
| Bare metal dimensions | 1060.5×756.1×451.5mm |
| Package dimensions | 885×580×150mm |
| Base package size | 560×450×100mm |
| Housing material (face frame / rear case) | Aluminum alloy/sheet metal |
| Shell color (face frame / back case) | Black |
| Protective glass | 4mm tempered glass / 7-level seismic |
| Installation form | Bracket / wall / cabinet / hanging |
| Heat dissipation method | Temperature controlled fan cooling |
| Surroundings | |
| Operating temperature | 0°C~50°C |
| Working humidity | 20%~80% (non-condensing) |
| Storage temperature | -20 ° C ~ 60 ° C |
| Storage humidity | 10%~90% (non-condensing) |
| Display mode | S-IPS, normally black display, transmissive |
| Maximum usage time (hours/day) | 24 hours |
| Characteristic | |
| Speaker | 2×8Ω/5W (built-in) |
| Support input method | Handwriting, pen writing, keyboard |
| Annex | |
| User manual | Manual, warranty card, certificate |
| Cable | Power cable |
| Other (optional) | Remote control, base/bracket, WiFi head |
| Android performance configuration | ||
| System platform | ARM | |
| Chipset | Ruixinwei | |
| CPU | Android quad core | |
| Main frequency | 1.8GHz | |
| Memory (DDR3) | DDR3 2G | |
| Memory (Flash) | NAND FLASH 8GB | |
| External memory card | SD card supports up to 32G | |
| Decoding resolution | Maximum support 3840*2160 | |
| Operating system | Support for Android 5.1 and above | |
| Network support | Ethernet, support WiFi, wireless peripheral expansion, 3G/4G (optional) | |

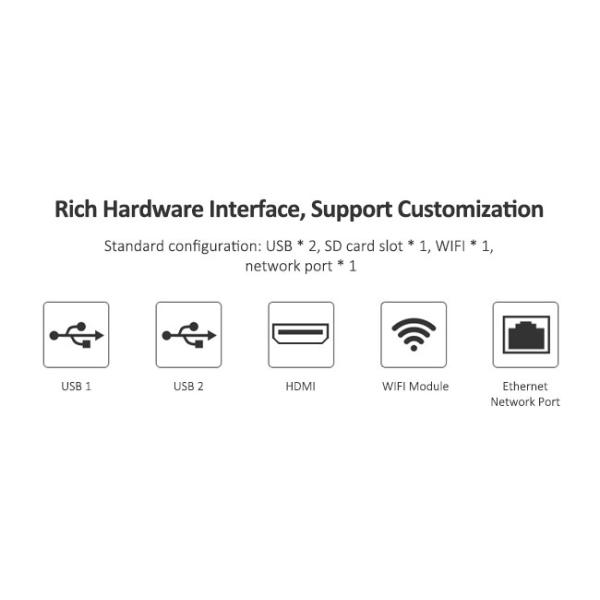

| Interface | USB×2, SD×1, audio×1, LAN×1, WIFI×1 | |
| Ethernet | 1 , 10M/100M adaptive Ethernet | |
| HDMI output | 1 support 1080P output | |
| Screen size | 32inch | 43inch | 50inch | 55inch | 65inch |
| Resolution | 1920X1080 | 1920X1080 | 1920X1080 | 1920X1080 | 1920X1080 |
| Brightness | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ |
| Display area(mm) | 698x392 | 930x523 | 1073×604 | 1208x679 | 1428x803 |
| Aspect ratio | 16:9 | ||||
| Viewing angle | 85/85/80/80 | ||||
| CPU | Corex A53 | ||||
| Graphics hardware | integrated with CPU | ||||
| Internal memory(RAM) | 2G/4G(optional) | ||||
| Flash Storage | 8G/16G/32G(optional) | ||||
| Operation System | Andriod 5.1/7.1(optional) | ||||
| Bluetooth | Optional | ||||
| Wifi | Yes | ||||
| Certifications | CE,ROHS,FCC,ISO 9001 | ||||
HUSHIDA horizontal design digital kiosk display is easy for
touching and viewing.
The product is made by aluminum alloy material and cold-rolled
steel plate body.
The fan with positive control and pressure is dust-proof, small
sound.
10 points infrared LED touch panel help your query more convenient.
The fine-grain finish on the surface make the machine high end
quality, has smoothly feeling while use.
The HUSHIDA Digital Kiosk Display is pluggable, supply longterm
work and display, support video, text, pictures,
updated in real time of propaganda, and so on.
|
