Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight

Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight

This is TN LCD display with white LED backlight.It is black icons and grey background.
We can custom make kinds of LCD display with very good display result. Welcome to inquiry us!

Basic Information:

ITEM	CONTENT	DESCRIPTION
1	Display Outline Size	98 ( H ) * 36 ( W ) * 1.1 mm ( T )
2	Viewing Size	92 ( H ) * 30(W) mm
3	Voltage	3.3V
4	Operation Temperature	-20～70℃
5	Drive Parameter	1/4 Duty 1/3 Bias
6	Backlight	4pcs Led
7	Color	White
8	Interface	Pin

How to make a LCD mold to get TN ,HTN,STN,FSTN,or VA LCD samples?

Firstly, please understand that there is no standard monochrome LCD display panel in monochrome LCD industry (not including color TFT LCD,COB moule and OLED) ,because specifications of LCD panel are quite different, especially size, voltage,viewing direction,graphics and so on.

In order to custom make LCD easy,please confirm these specifications below:

LCD size (mm):

Customers should tell us viewing area size or total LCD size in millimeter(length,width). We will help you design a final and economic LCD size.
LCD total thickness is 2.8mm or 2.0mm or 1.7mm. Usually,2.8mm is very common thickness.

LCD graphics(characters,icons)

Customers should send a simple LCD graphics(Formal CAD drawing or sketch) to us,then we will understand how many segment it is.Our engineer will make formal LCD drawing for your approval.

LCD type:

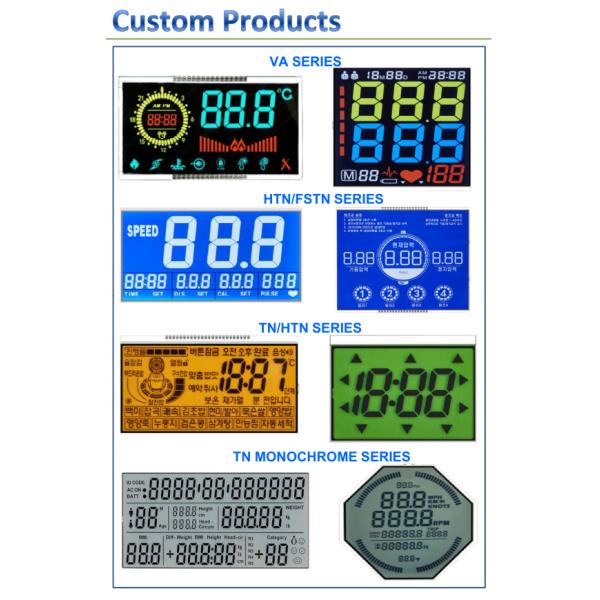

1) TN, 2) HTN, 3) STN, 4) FSTN, 5) VA, 6) DFSTN

How to choose LCD type?

* Usually,TN LCD is used very widely,Such as power meter LCD,telephone LCD, calculator LCD, electric cooker LCD and so on. TN LCD is cheapest,but viewing angle is narrow.

* HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD.

* STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much!

STN LCD not only can make segment LCD,but also can make dot matrix LCD.
Unit price of STN LCD is higher than HTN LCD.

* D/FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's.

* VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general, VA LCD has a excellent display result.If you want a wonderful display result, VA LCD will be your best choice.

Price of VA is similar with FSTN LCD.
