| Categories | Vibro Piling Contractors |
|---|---|
| Brand Name: | BVEM |
| Model Number: | BJV130E-377 |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 600 sets per year |
| Delivery Time: | 15 work days |
| Packaging Details: | wooden case |
| Product name: | vibrator equipment |
| Material: | steel |
| Max amplitude: | 19 mm |
| Outer diameter: | 377 mm |
| Generator power: | 300 KVA |
| Working pile diameters: | 800mm-1200mm |
| Company Info. |
| Beijing Vibroflotation Engineering Machinery Limited Company |
| Verified Supplier |
| View Contact Details |
| Product List |
Economic vibro piling equipment used for foundation treatment BJV130E-377 vibroflot
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) | Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) | Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV130E-377 | 130 | 255 | 1450-1800 | 19 | 180-276 | 1900 | 377 | 3355 |
Beijing vibroflotation engineer machinery co.,ltd
The top-level researcher of Vibrator in China
Researched and produced vibrators in power of 30KW,55KW,75KW since
1977 to 2005
Researched and produced 150kw vibrator in 2006
Researched and produced 180kw vibrator in 2009
Produced Bottom Feed Vibrator with double lock pressure bunker in
2012
Researched and produced 260kw vibrator in 2014
Researched and produced Z125 Hydraulic-driven vibrator in 2014
Lauched Vibrator performance testing equipment in 2014
Vibro compaction
Under the effect of vibration, the saturated sand soil liquefaction
happen,which make the sand particles re-arranged and the soil
interspace reduced.
Boring
By vibration and the flushing of water and/or air, the vibroflot
penetrates to the designed depth.
Compaction
Compact the soil section by section up to the gound according to
the requirements of the compaction current, compaction time and
sectional compaction length.

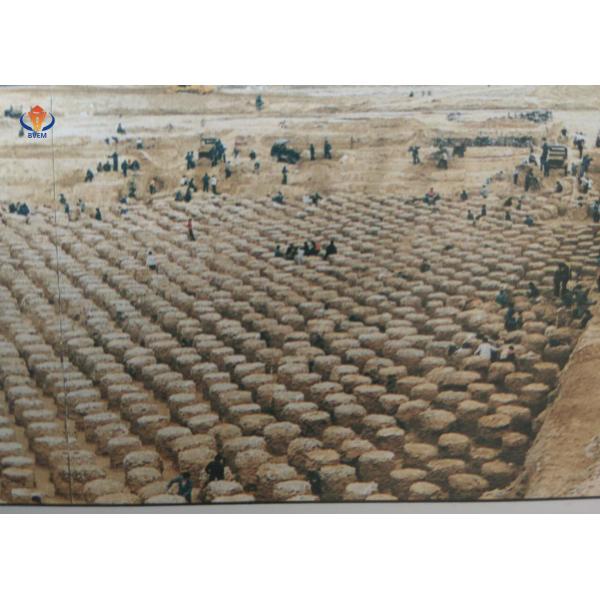

Vibro replacement
Jet water and vibrate by vibroflot to form holes. Fill in pile
holes by section with solid filling materials such as gravel
(cobble) etc., to finally form composited foundation.
Boring
By vibration and the flushing of water and/or air, the vibroflot
penetrates to the designed depth.
Backfill
Fill stones into the bore-hole, and compact section by section up
to the ground according to the requirements of compaction current
and the sectional compaction length.
Vibro techniques
A foundation treatment method by joint action of horizontal
vibration and high pressure water to compact the loose sand layer
or formed in soft soil of stone column to compose the composite
foundation with original soil together.
|
