16 In 16 Out Dante Audio DSP RS232 And Camera Control , EQ High End DSP Processor

Name: 16 In 16 Out Dante Audio DSP RS232 And Camera Control EQ High End DSP Processor
Brand: FHB Audio
Price: 1 USD

16 In 16 Out Dante Audio DSP RS232 And Camera Control , EQ High End DSP Processor

Categories	Dante DSP Processor
Brand Name:	FHB Audio
Model Number:	MX-1616D
Certification:	CE,ROHS
Place of Origin:	China
MOQ:	2 Set
Price:	USD
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Set per Month
Delivery Time:	1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details:	Standard packaging;GW:3.5KG/Set;5Set in one Carton(606036cm);
Products Name:	Dante DSP
Keyword:	DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer
Model No.:	MX-1616D
Analog Channels:	16 input,16 output
Dante Channel:	16 input,16 output
Function:	Automatic mixing, AEC,ANC,AFS
DSP Chips:	Ti 456MHz FLOPS DSP
Software:	PC,Adorid,IOS,Ipad,Web control
Material:	Aluminum
nput to output dynamic range:	114dB
Application:	Conference,Education,Hotel
Digital-to-analog dynamic range (A-weighted):	120dB
Certificate:	CE,ROHS
Weight:	3Kg
Working Power Supply:	AC110V-220V,50Hz/60Hz
Dimensions (WDH):	Dimensions (WDH)

Contact Now

Add to Cart

Company Info.

Shenzhen FHB Audio Technology Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

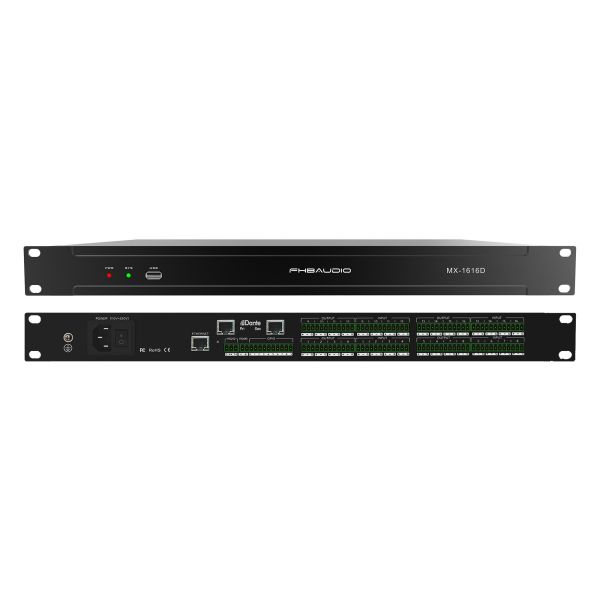

16 In 16 Out Dante Audio DSP RS232 And Camera Control , EQ High End DSP Processor

Professional Audio EQ Equipment 16 Inputs 16 Outputs Dante DSP Audio Processor with RS232 and Camera Control

Our Dante products line:

Dante DSP
Dante Interface:2CH Dante AVIO,2CH Dante Wall Plate,4CH Dante Box,8/16ch Dante Interface
Dante Speaker Management processor
Dante DSP Amplifier
Dante PoE Microphone
Dante Speaker

Description:

The MX-1616D audio processor is a freely designed audio processing and control system.It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination, etc, targeted to solve various practical problems in the application scene.

Main Features:

USB Background music playback and recording function
Support mobile phone, tablet control and distributed cloud control
DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
Full function matrix remix
Built-in automatic camera tracking function
Support for scenario presets；
Automatic memory protection when power off
1U Whole aluminum chassis
Built in Dante Module

Model No.	MX-1616D
DSP Processing	Ti 456MHz FLOPS DSP
Number of analog channels	16 Input + 16Output
Number of Dante channels	16 Input + 16 Output
Core Algorithm	Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC)
GPIO	8 ( Including input and output)
RS232/RS485	1
RJ45 control interface	1
USB Port	1
RJ11 phone interface	0
DANTE network interface	2
Simulated maximum gain	51dB
Digitalizing bit	24bit
Sampling Rate	48k
Frequency Response(20~20KHz)	±0.2dB
Analog-to-digital dynamic range (A-weighted)	114dB
Digital-to-analog dynamic range (A-weighted)	120dB
Input to output dynamic range	108dB

Total harmonic distortion + noise	＜0.003% @1KHz ,4dBu
Floor noise (A- weighted)	-90dBu
Delay storage	2s
Analog input to output system delay	3ms
Input impedance (balance -type)	20KΩ
Output impedance (balance -type)	100Ω
Maximum Input Level	+18dBu,balance
Maximum Output Level	+18dBu,balance
Equivalent input noise EIN(20-20kHz,A-weighted).	≤-131dBU
Phantom power (per input)	48V
Input common mode rejection,60Hz	70dB
Channel Isolation,1kHz	104dB
Dimensions (WDH)	48225845(mm)
Weight	3Kg
Power Consumption	<40W
Operating Temperature	-10 - 50℃
Working Power Supply	AC110V-220V,50Hz/60Hz

Software:

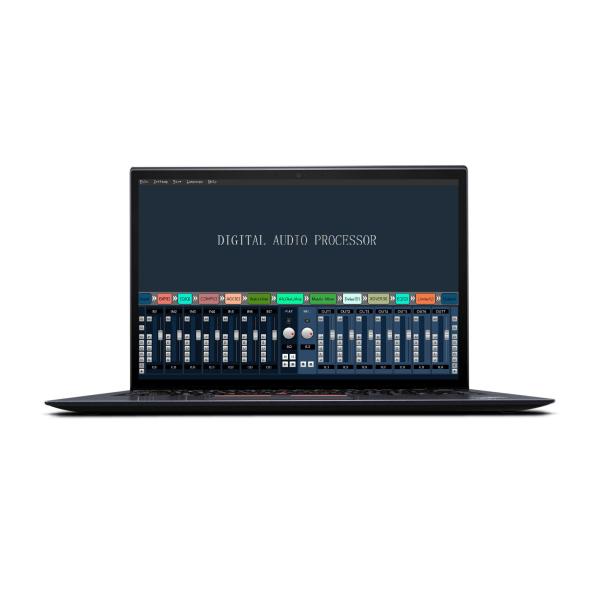

Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.

FAQ:

Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.

Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements

Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.

Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Education institutes, Hotel, Private corporate conference hall etc,.

Q5: What’s the delivery time?

A:Sample order: During 5days,Bulk order:10-15days
