| Brand Name: | HOTHMI |
| Model Number: | HTG12864T |
| Place of Origin: | Dongguan, China |
| MOQ: | 2 |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 99999 |
| Delivery Time: | 25 days |
| Product type: | Graphic COG |
| Show contents: | 128x64 dot |
| Outline size(mm): | 53.2x37.8x2.8 |
| Size of View Window(mm): | 49.2x27 |
| Display size(mm): | 40.92x24.28 |
| Point spacing(mm): | 0.28x0.34 |
| Visual angle: | 6H |
| Connection PIN Number: | 20PIN |
| Working temperature: | -30~80 ℃ |
| Power supply voltage: | 3.3 |
| Driver chip model: | ST7567 |
| Company Info. |
| Hotdisplay Technology Co.Ltd |
| View Contact Details |
| Product List |

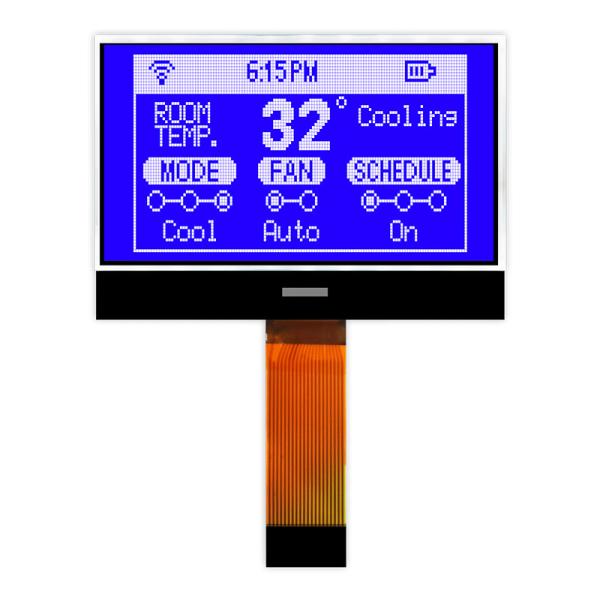

HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -30 to 80 degrees Celsius. This HTG12864T01A-MCU8080 display includes modified corner tab supports. It has an optimal view of 6:00, operates at 3.3V supply voltage , and is RoHS compliant.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 128x64 | dots |
| Module dimension | 53.2x37.8x2.8 | mm |
| View display area | 49.2x27 | mm |
| Dot size | 0.28x0.34 | mm |
| Dot pitch | 0.32x0.38 | mm |
| Operating temp | -30~80 | ℃ |
| Storage temp | -40~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V | |
| Viewing direction | 6H | |
| Display mode | FSTN | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | ST7567 | |
| Backlight | WHITE | |
| Product application | industrial control, instrumentation | |
Absolute Maximum Ratings
| Items | Symbol | MIN. | MAX. | Unit | Condition |
| Supply Voltage | VDD | VSS | +3.3 | V | VSS = 0V |
| Input Voltage | VIN | VSS | VDD+0.3 | V | VSS = 0V |
| Operating Temperature | TOP | -30 | +80 | ℃ | No Condensation |
| Storage Temperature | Tst | -40 | +80 | ℃ | No Condensation |
