| Brand Name: | CTSTC |
| Model Number: | ZT-JGQG6S |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C D/A D/P |
| Supply Ability: | 30 SETS PER MONTH |
| Delivery Time: | 45-60 days after prepayment |
| Packaging Details: | 1500*920*1640mm |
| Product name: | CHN-TOP Self-developped Ultra Hard Material Cutting Machine With 2 years gurranty |
| Dimension: | 1500*920*1640mm |
| Power: | 380V |
| Cooling Mode: | water cooling |
| Cnc or not: | Yes |
| Guarranty: | 2 years |
| Key word: | PCD/PCBN cutter |
| Condition: | New |
| Model: | 2022 mode |
| After-sales service provided: | Engineers available to service machinery overseas |
| Company Info. |
| CHN-TOP SCI&TECH CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

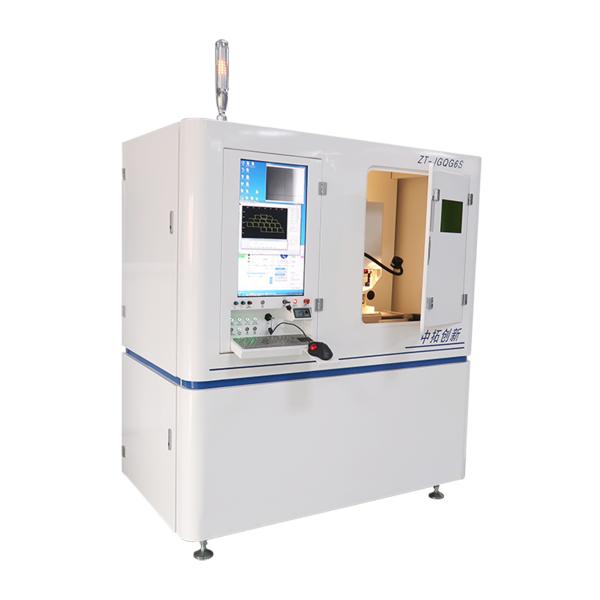

CHN-TOP Self-developped Ultra Hard Material Cutting Machine With 2 years gurranty
ZT-JGQG6S is a new model of laser cutting machine. The self-developed laser source makes better cutting performance, completely replaced the traditional YAG cutting machine. Higher cutting speed and thinner cutting kerf (2.0mm thickness PCD, the cutting kerf is 0.06-0.08mm), smooth cutting surface, running steady and maintenance-free. Suitable for cutting PCD/PCBN/ CVD/Sapphire/ PDC/ Cemented Carbide/Ceramics and other precious and ultra-hard materials. Especially, it has incomparable advantages in cutting low content PCBN.
Marble base table, not affected by temperature and humidity, stable and not easy to deform.
Adopts advanced fiber laser module, more stable, more precise, more durable and
maintenance-free.
The self-developed laser source, minimum after-sales service cost.
High efficiency, high precision cutting, thin cutting kerf, saves the material.
3 times faster cutting speed than YAG, with smaller heat-affected zone.
Two axis of the worktable are driven by servo motor, closed-loop control, repositioning accuracy :s:0.005mm.
24 hours working, processing any 2D graphics, software supports automatic model and manual model, equipped with CCD monitor.
Z axis step motor drive and A axis as rotary axis, can process the material with relief angle.
Technical Parameters:
Power supply requirements | 380V50Hz, Five-core four-square power cord |
Working environment | Room temperature 20~40℃, humidity ≦60%, away from oil source |
Cooling Mode of Machine | Adopt dual temperature cooling system , laser cutting head cooled by room temperature water. Laser cooled by 22℃cooling circulating water, and for manufacturing workpiece cooled by purify oil-free compressed air. |
Laser Source | Fiber laser |
Duty Ratio | 1~100% |
Frequency | 1-2000 Hz |
Power percentage | 1%~100% |
Four Axis stroke | 300*300*50mm A-Axis 0±30° |
Maximun power output | 3000W |
Positioning accuracy | ≦± 0.005mm |
Repeat positioning accuracy | ≦± 0.005mm |
|
