4.3 Inch Small LCD Touch Screen 480X800 Dots IPS TFT Display Module With CTP

4.3 Inch Small LCD Touch Screen 480*800 Dots IPS Tft Display Module With CTP

1. Specification of Lcd Touch Screen Display

2. Description of Small Touch Screen Display

ChengHao Display model CH430WV08B-CTB is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light, a Capacitive touch panel and FPC.

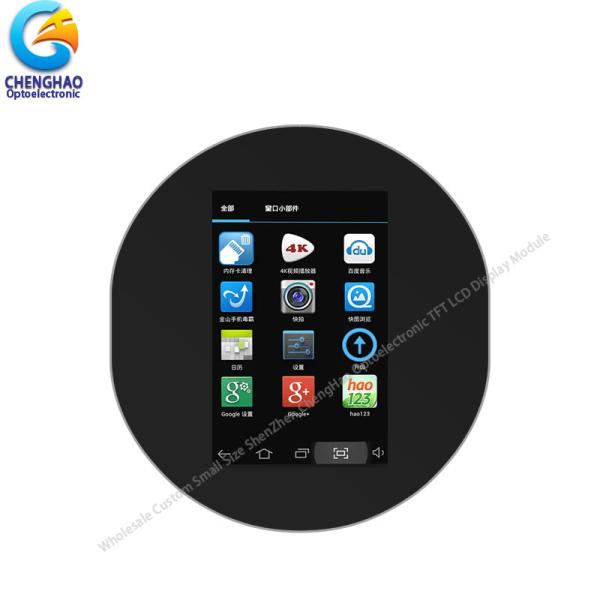

This TFT LCD has a 4.3 inch diagonally measured active display area with 480(RGB)*800 dots resolution and with a round cover.
The driver used for this project can display 16M colors by R.G.B. signal input and is mounted on the glass , the interconnection via FPC including components to drive the display module. Support 3 Line SPI + 16 bit RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.

3. Drawings of Lcd Touch Monitor

Notes:
(1) Display Type : 4.3" Tft lcd
(2) Viewing Direction : ALL
(4) Polarizer Mode : IPS / Transmissive / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Qucik Detail of Ips Tft Display

* LCD name: 4.3 Inch Small LCD Touch Screen 480*800 Dots IPS Tft Display Module With CTP
* Part No.:CH430WV08B-CTB

* Size.: 4.3 inch
* Support touch panel Type: CTP
* Display type: 4.3’’TFT+CTP
* Display colors: 16M
* Resolution (pixels): 480(RGB)*800
* Viewing direction: All

* Color Pixel Arrangement: RGB vertical stripe

* Display mode: IPS / Transmissive / Normally Black
* Overall size: 128.85(W)×118.45(H)×4.5(T) mm

* Active Area: 93.6(W)×56.16(H) mm

* Dot pitch: 0.117(W)×0.117(H) mm

* Luminance: 300 cd/m2
* Contrast: 800:1
* Interface type: 3 line SPI + 16bit RGB Interface
* Pin NO.: 35
* Backlight : 8 White LED

* Operating temperature: -20 ~ +70

* Storage temperature: -30 ~ +80 ℃

5. Our Service

Shipping Policy:
1- Regularly, we shipped via Fedex/Dhl/UPS , express way (2-7 working days arrival), suitable for small order.
2- Sea shipping way, (25-40 days arrival), low cost, port to port, usually for large quantity order.

Custom/OEM:
Custom service is ok.

Sample Policy:
1- Usually we offer random sample for free but with your sample shipping freight charge paid.
2- We offer 1-2 pcs each sample randomly, if for more pcs, we will try send to you, if not and you must

request more pcs, we will charge same sample fees for make more pcs samples to you.

Easy order process:
Please kindly confirm us about product name, images, colors and quantity before you make the order .
